10-23 Tacoma OEM Fit Toyota Tacoma Air Compressor Kit
10-23 Tacoma OEM Fit Toyota Tacoma Air Compressor Kit
Take the guesswork out of maintaining proper tire air pressure with the Cali Raised Offroad on board Air Compressor Kit. It can be used to reinflate tires after deflating them for off-road adventures or to top off tires when the Tire Pressure Monitor (TPM) indicates low tire pressure. This integrated onboard compressor can also be used to inflate air mattresses, soccer balls, footballs, basketballs, bicycle tires and pool floats.
This OEM Fit Toyota Tacoma On Board Air Compressor uses a Single 12V Compressor capable of filling a tire at a rate of 2.54 CFM.

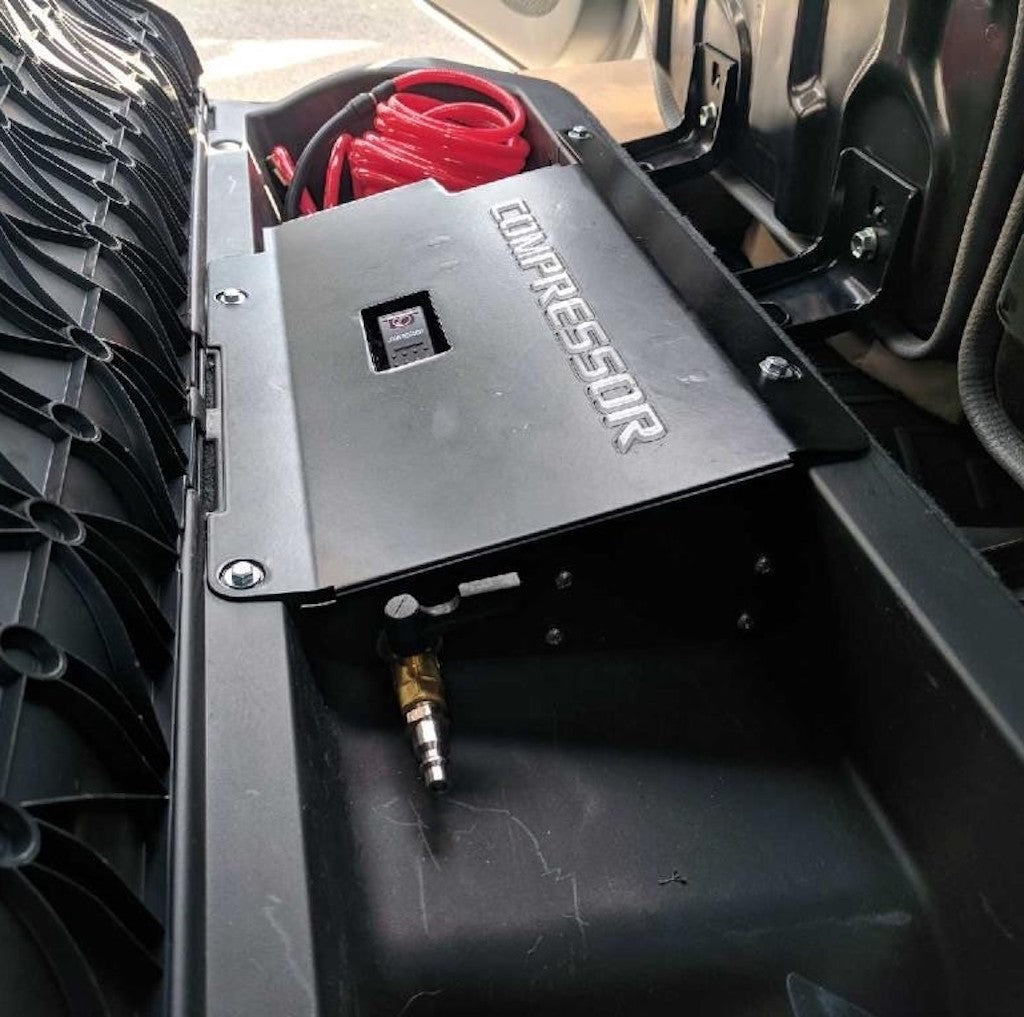

It mounts under the Rear Seats and comes with a harness that runs to the battery.
Stats:
|
Operation Voltage |
12V |
| No Load Current Draw |
15A |
| Under Load Current Draw | 30A |
| Fuse |
40A |
| Duty Cycle |
33% @ 100PSI |
| Max Working Pressure |
50 PSI |
| No Load Air Flow |
2.54 CFM @ 0PSI |
| Loaded Air Flow |
1.60 CFM @ 40 PSI |
| Net Weight |
15.2 lbs |
Average Inflation Time:
Tacoma 33" Tire from 15 PSI to 35 PSI
2 Minutes
Includes Bracekt 158998
4 5mm screws
4 rmm scnu
2 -138760-3 s2 Brackets
