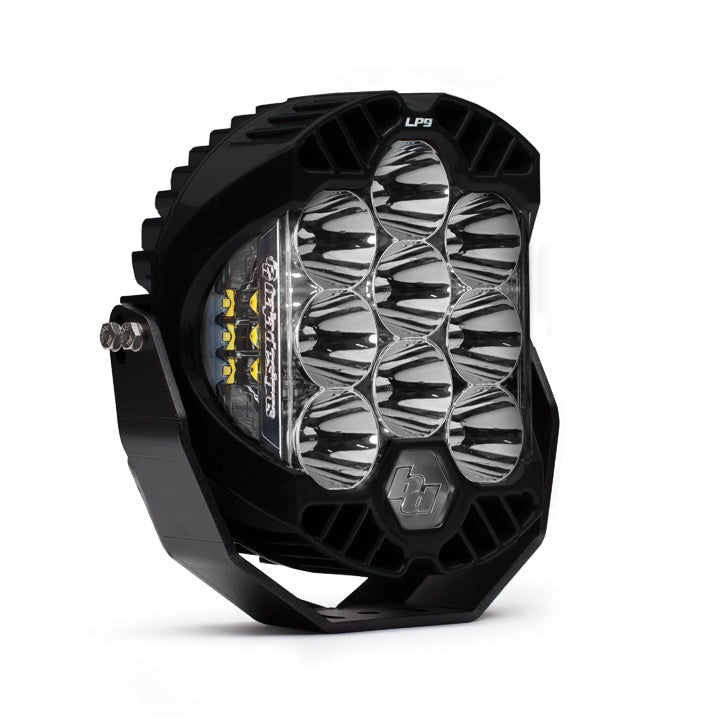

Baja Designs LP9 Sport LED

The LP9 Sport is perfect for enthusiasts that want a full size light with modern styling and advanced features. The Sport model still includes all of the technology that makes the LP9 series so popular, from Direct Ducted Cooling - that keeps your light cool under stress - to the Integrated Peripheral Technology (IPT), which produces an incredible 200° spread of usable light.

The LP9 Sport utilizes 9 forward projecting LEDS to produce 6,500 Lumens at 61 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 2,280 lumens at 21 watts.

As with all of our LED offerings, this light features uService technology - allowing customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.

Note: The LP9 Sport is simple on/off (no hi/lo) and does not include the amber backlit feature. These features are available on the LP9 Pro and Racer Editions.

LP9 Patent: 5,504,603

Baja Designs Features:

• Satisfactions Guarantee - 30 Day Money Back Guarantee
• Limited Lifetime Warranty - Complete Purchase Protection
• uService - Replaceable Lenses And Optics
• ClearView - All The Light, Right Where You Need It.
• MoistureBlock - Waterproof, Rain Proof, Submersible
• CopperDrive - Only LED Driven At 100 percent
• 5000K Daylight - Less Driver Fatigue, Natural Color

Specifications:

• Forward Projecting Lumens: 6,500 Utilizing 9 LEDs
• Forward Projecting Wattage/Amps: 21W / 1.52A
• IPT Lumens: 2,280 Utilizing 6 LEDs
• IPT Wattage/Amps: 21W / 1.52A
• Dimensions: 8" Diameter / 3.25 inch Depth
• Weight: 6.5bs
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hardcoated Polycarbonate
• Housing: Hard Anodized Aluminum
• Bezel: Billet Machined Aluminum
• Hardware and Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof up to 9ft and Pressure Washable)
• IK10 Compliant (Mechanical Impact Testing)

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42 degree) and the spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

High Speed Spot: A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)

Light Options:

• Baja Designs LP9 Sport LED White / Spot / One Pod Only / CRO 125516 / 350001
• Baja Designs LP9 Sport LED White / Spot / Pair With Harness / CRO 125964
• Baja Designs LP9 Sport LED White / Driving/Combo / One Pod Only / CRO 125517 / 350003
• Baja Designs LP9 Sport LED White / Driving/Combo / Pair With Harness / CRO 125965

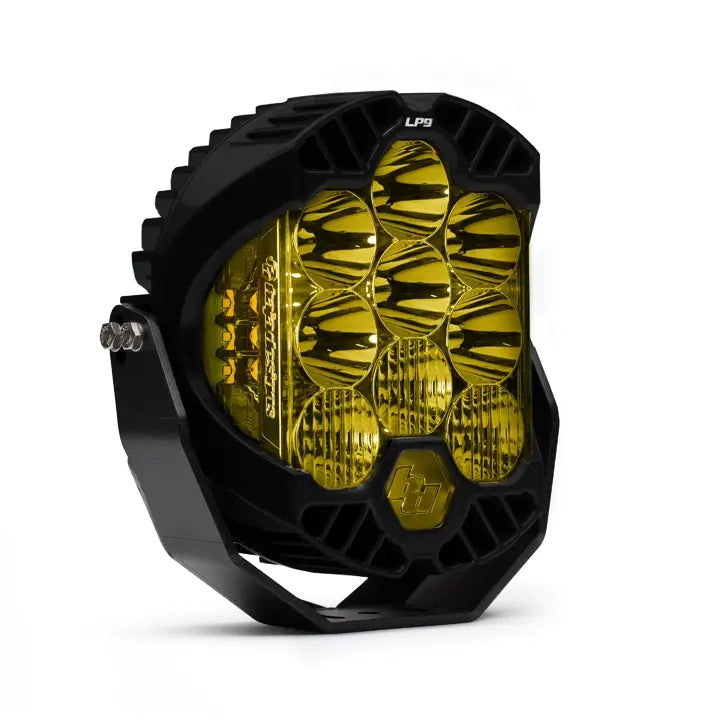

• Baja Designs LP9 Sport LED Amber / Spot / One Pod Only / CRO 125518 / 350011
• Baja Designs LP9 Sport LED Amber / Spot / Pair With Harness / CRO 125966
• Baja Designs LP9 Sport LED Amber / Driving/Combo / One Pod Only / CRO 125519 / 350013
• Baja Designs LP9 Sport LED Amber / Driving/Combo / Pair With Harness / CRO  125967
