Dinan Carbon Fiber Cold Air Intake for 2018-2023 BMW M5 - D760-0049

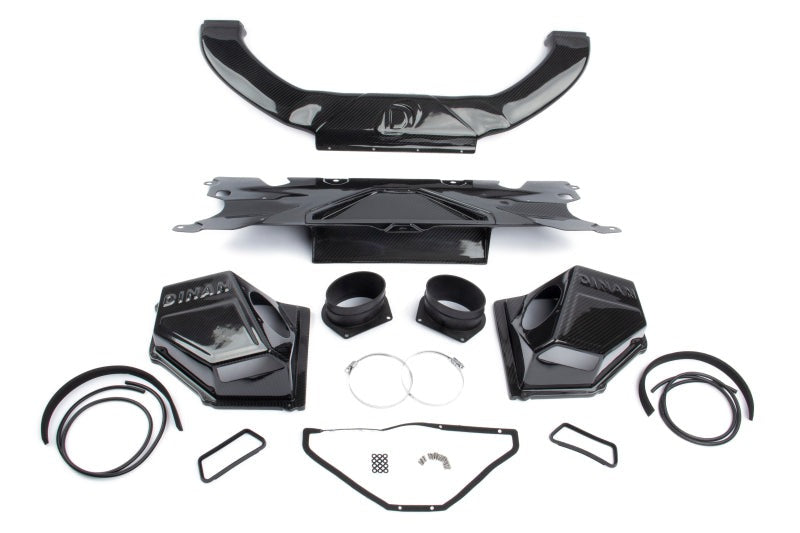

Upgrade airflow, throttle response, and under-hood appearance on your F90 BMW M5 with the Dinan D760-0049 Carbon Fiber Cold Air Intake. Designed for 2018-2023 BMW M5 applications, including Competition and CS variants listed below, this sealed intake system features gloss UV-coated 2x2 carbon fiber construction, enlarged dual airboxes, larger filters, and a functional center wishbone inlet that supplies an additional source of ambient outside air. Dinan reports 637 CFM per bank versus 575 CFM stock at 28 inches H2O, providing an 11% increase in airflow.

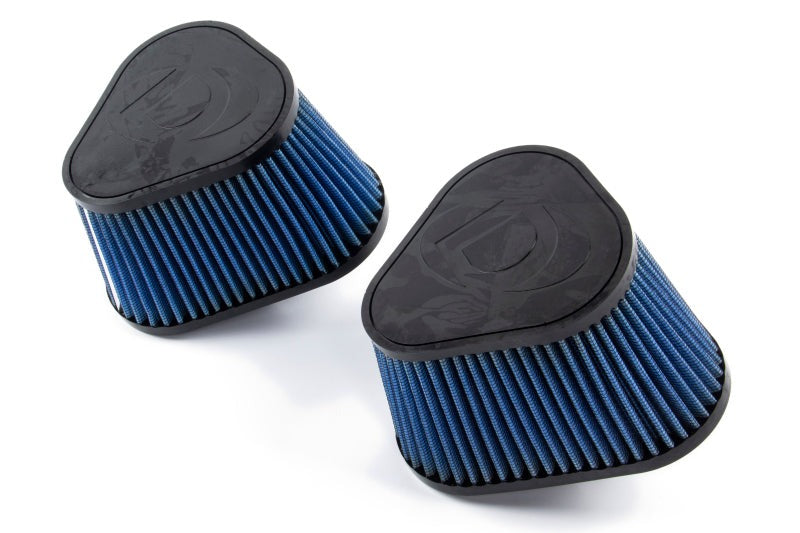

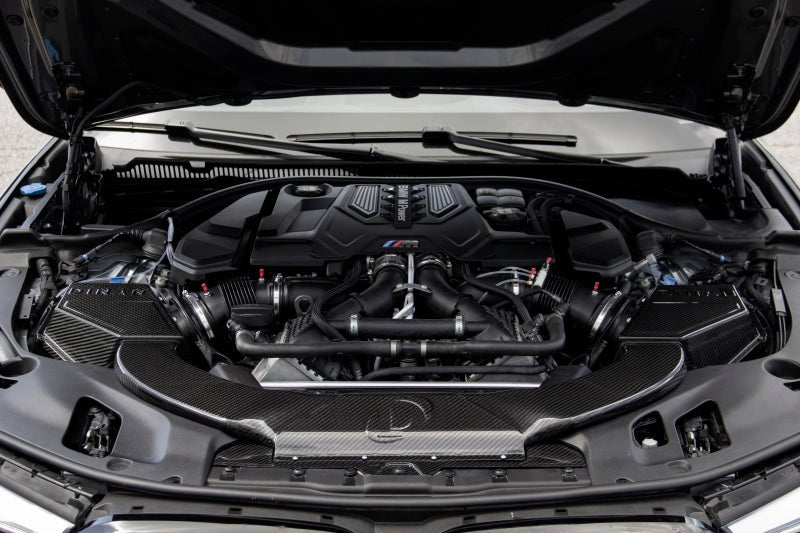

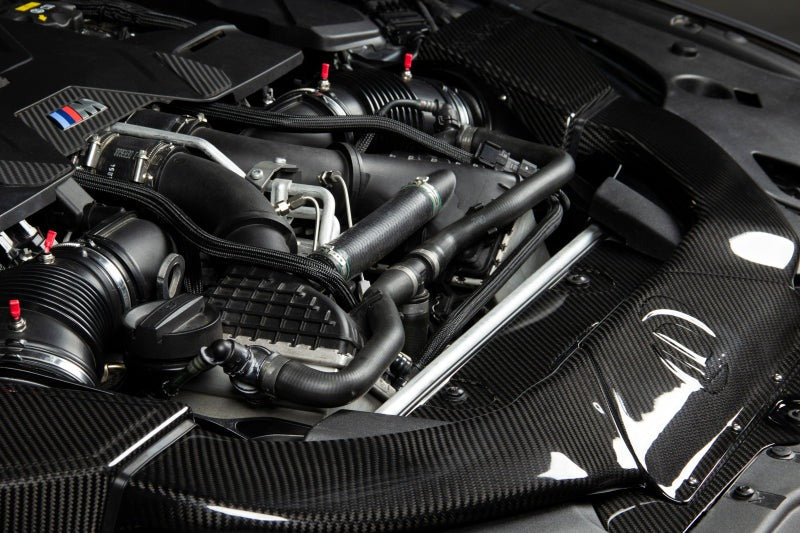

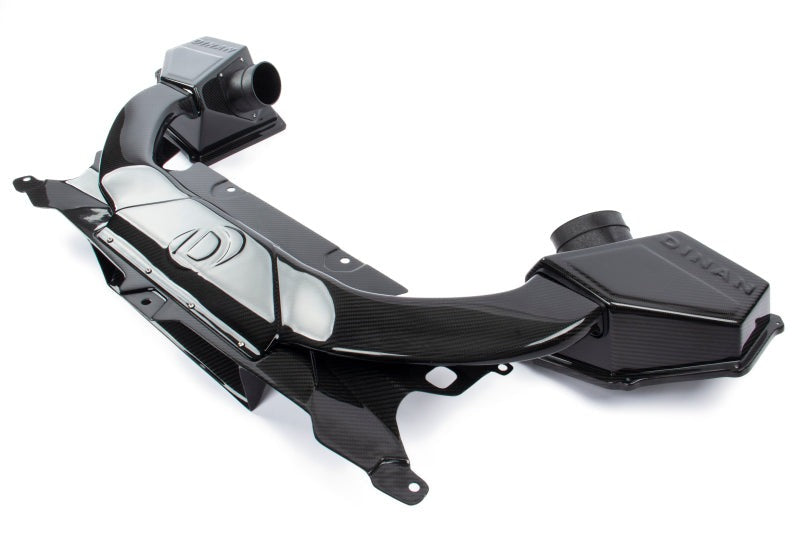

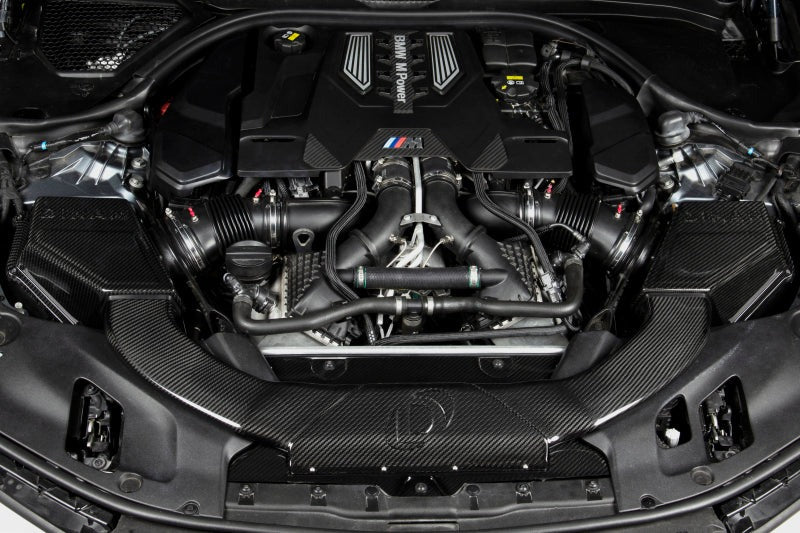

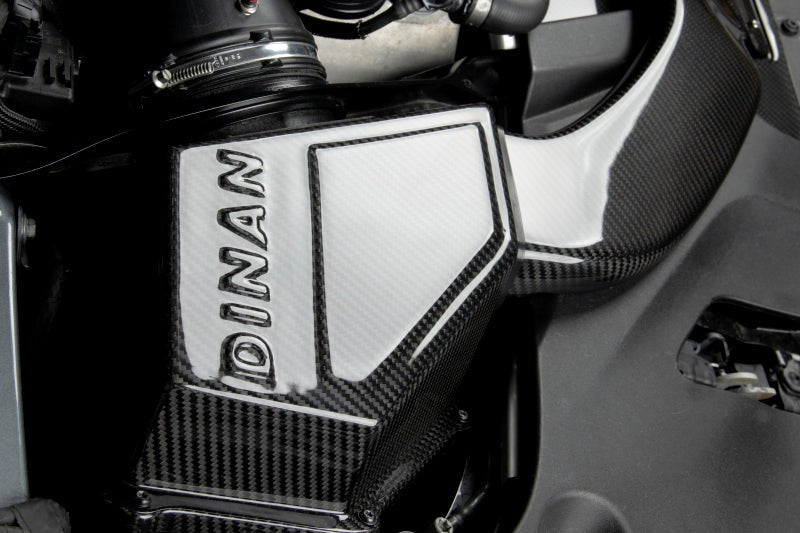

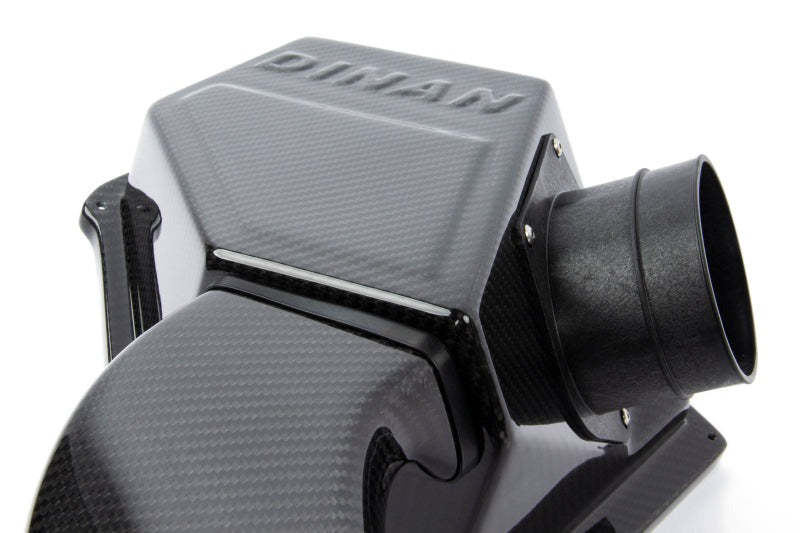

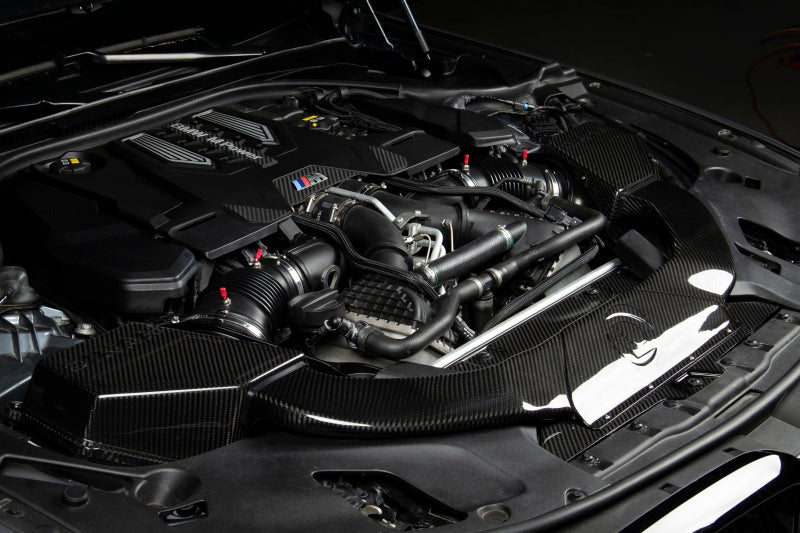

The functional carbon fiber wishbone spans the engine bay and channels additional outside air from a central scoop located behind the front grilles to supplement the factory left- and right-side airbox inlets. The sealed airboxes are 31% larger than stock and house filters with 35% more surface area per side. By reducing restriction and pressure depression in the intake tract, the Dinan system is designed to improve turbocharger efficiency while providing improved throttle response and a modest increase in induction sound. The system can also be paired with optional Dinan Turbo Inlets for further intake-path optimization.

Key Features & Specs:

• Brand: Dinan
• Product Type: Cold Air Intake / Air Intake System
• Part Type: Air Intake Kit
• Part Number: D760-0049
• Fitment: BMW M5
• Chassis: F90
• Material: Carbon Fiber
• Carbon Weave: 2x2

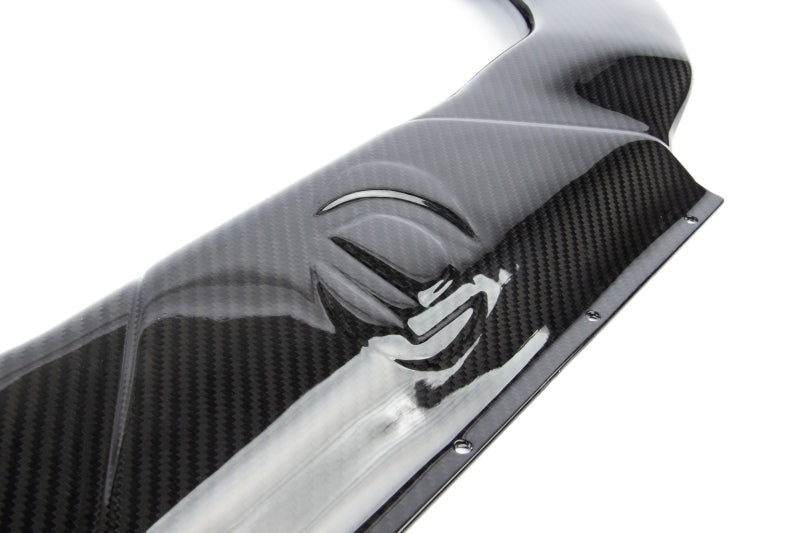

• Finish: Gloss UV-Coated Carbon Fiber

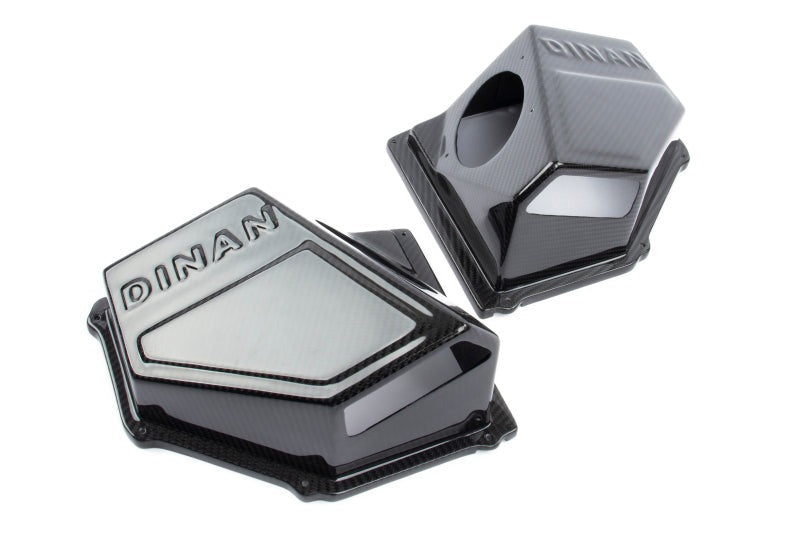

• Airbox Style: Sealed Dual Airbox
• Airflow: 637 CFM per bank vs. 575 CFM stock at 28 in. H2O
• Flow Increase: 11% over stock
• Airbox Volume: 31% larger than stock
• Filter Area: 80 in² per side vs. 56.5 in² stock
• Filter Area Increase: 35%
• Secondary Air Source: Functional center wishbone inlet / scoop
• Sound: Slightly increased induction sound
• Throttle Response: Improved
• Turbo Efficiency: Reduced intake restriction and pressure depression

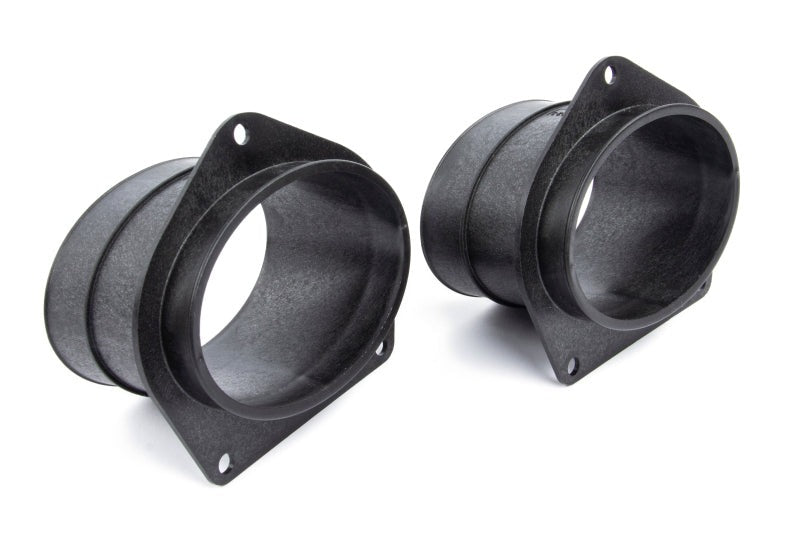

• Turbo Inlet Compatibility: Can be paired with optional Dinan Turbo Inlets
• Installation: Bolt-on
• Labor Time: 2 hours
• Dinan Point Value: 3
• Emission Code: 7
• UPC: 813725025742
• Warranty: Remainder of vehicle factory limited warranty, up to 4 years/50,000 miles, or 2 years/unlimited miles, whichever is greater

Fitment:

• 2018-2023 BMW M5 Base
• 2019-2023 BMW M5 Competition
• 2022 BMW M5 CS
