Name: ICON Front 3.0 V.S. Remote Reservoir CDCV Coilover Kit for 2017-2021 Ford F-150 - 95002
Brand: ICON
SKU: ICO95002
Price: 1144.83 USD
Availability: InStock

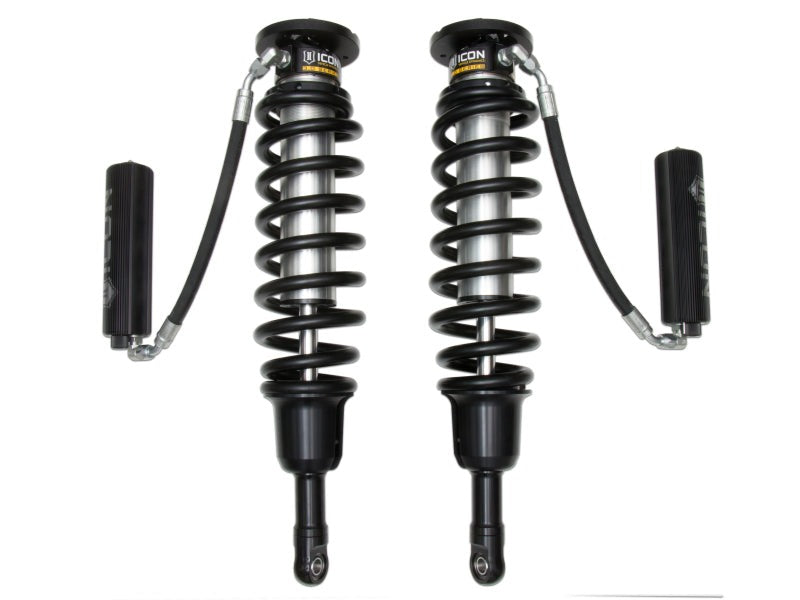

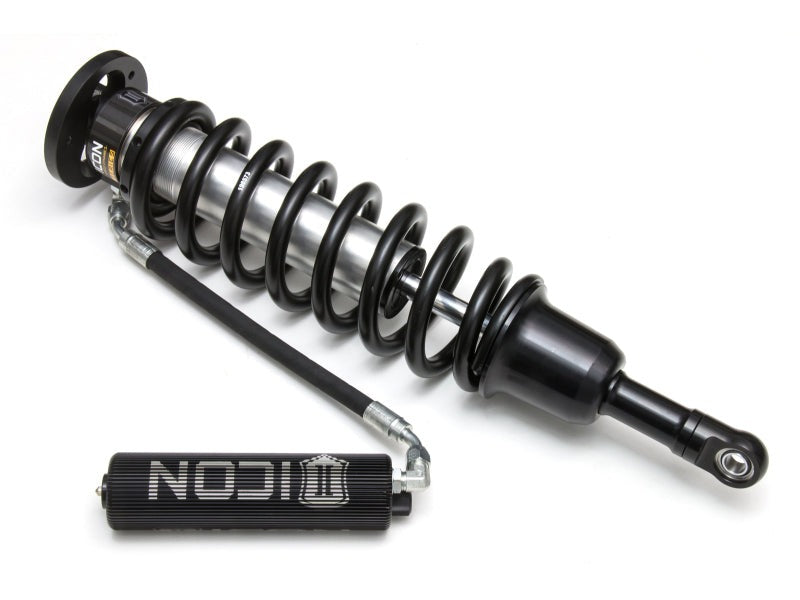

ICON Front 3.0 V.S. Remote Reservoir CDCV Coilover Kit for 2017-2021 Ford F-150 - 95002

$1,144.83 $3,816.10

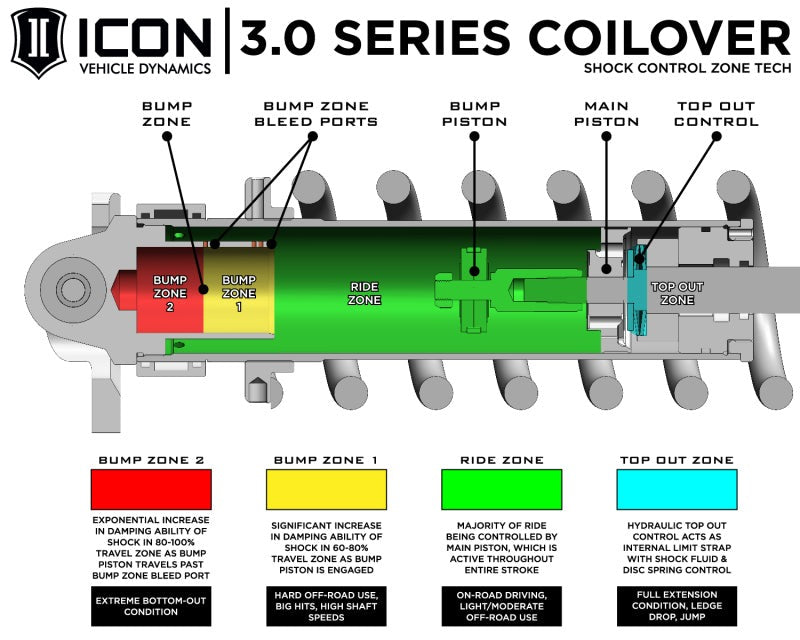

The front end geometry of the Gen 2 Raptor was found to be fairly similar to the previous model truck, however the shock mounting points had been moved higher up on the chassis. Seeing this as an opportunity, the team was able to design a 3.0 Series coilover that has more shaft travel while utilizing a barreled coil spring for more efficient packaging. The vehicle-specific valving featured in these shocks and the all new ICON-engineered spring work together to provide exceptional on-road ride quality with excellent off-road characteristics. ICON’s multi-stage hydraulic “Bump Zone” adds to the performance capability by providing an exponential increase in damping ability during the last 40% of compression travel for superior bottom-out resistance. In the ride zone, these 3.0 Series coilovers see a 50% increase in damping ability with the use of a significantly larger piston than what is found in the factory shocks. New 10” finned aluminum reservoirs provide a generous amount of shock oil while also providing an increase in surface area for enhanced cooling and consistent damping. The addition of ICON’s CDC Valve technology provides 10 settings of damping adjustment allowing the end-user to adjust the “feel” of the shocks for different terrains and vehicle cargo configurations. All of these features work together to deliver the perfect blend of on-road comfort and off-road performance.

This Part Fits:

Features

Large 3.0-inch performance coilover platform
Vehicle-specific valving and adjustable ride height on applicable vehicles
Increased oil volume and heat capacity for demanding use
CDCV-equipped configuration provides external compression-damping adjustment
Remote reservoir supports cooler, more consistent damping during extended use

Specifications

Brand: ICON Vehicle Dynamics
Product Type: Coilovers
Manufacturer Part Number: 95002
Variant SKU: ICO95002
Series / Product Family: VEHICLE SPECIFIC (V.S) 3.0 SERIES COILOVER SHOCKS | OPTIONS: C = CDC VALVE, 700 = 700 LB/IN COIL SPRING UPGRADE
GTIN: 00840103407128
Weight: 95 lb
Application: 2017-2020 Raptor

Product Family

ICON V.S. 3.0 Series coilovers step up shock volume and piston area for demanding vehicles and higher-speed off-road use. The larger body improves heat capacity and control under sustained load, while vehicle-specific valving and available compression-adjustment technology retain everyday drivability.
