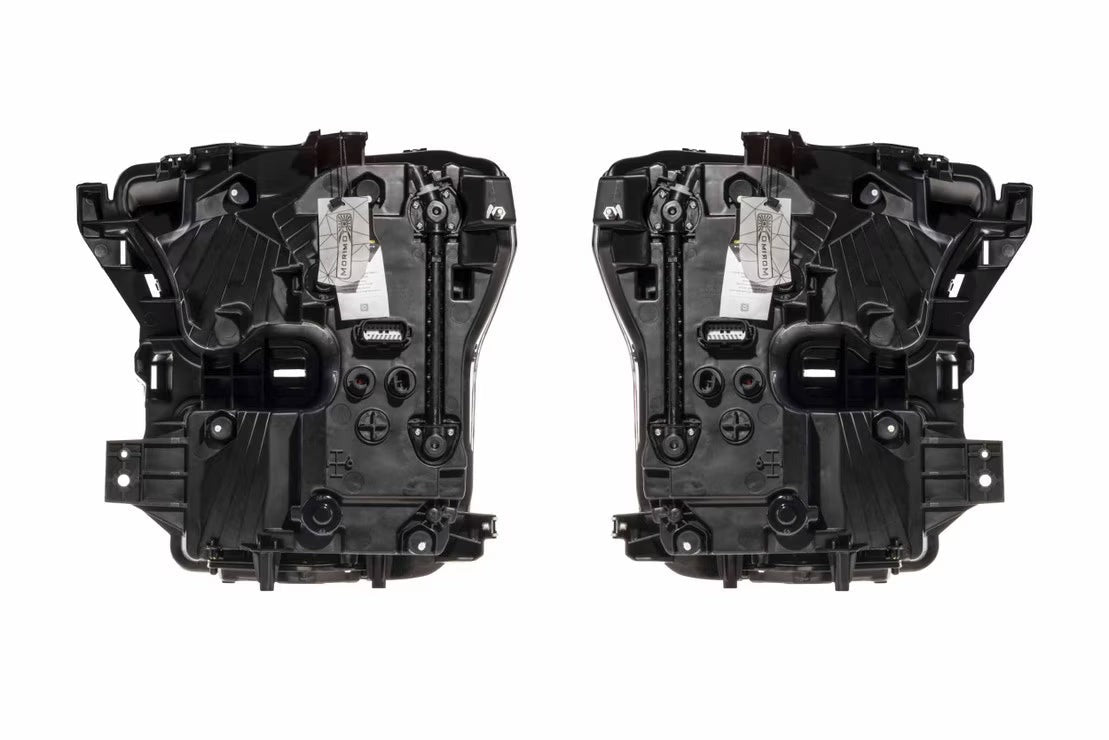

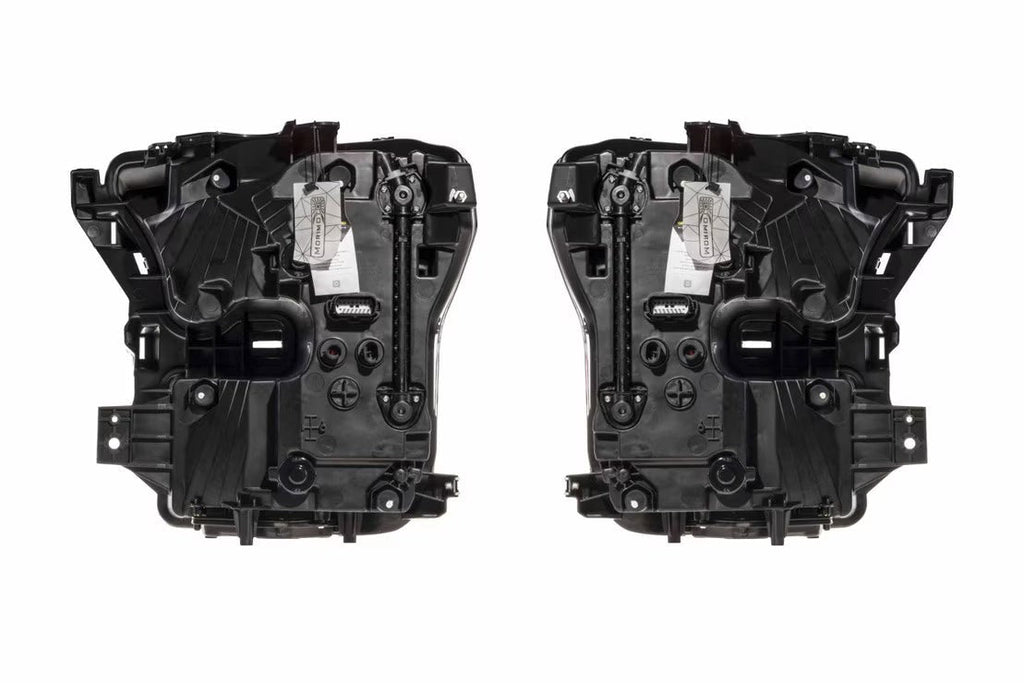

Morimoto XB Evo Hybrid LED Headlights, part number LF2-502Y, fit 2015-2017 Ford F-150 and 2017-2020 Ford Raptor applications. Sold as a complete driver- and passenger-side pair, the XB Evo Hybrid uses dual Type 1 Ishida Bi-LED optics and provides low beam, high beam, parking light, turn signal, and daytime running light functions. Compared with the full XB Evo version, the Hybrid removes the D-Optic high-beam assist, lens heaters, mode selectors, and welcome sequence. This model uses a fixed white DRL, fixed fade-off turn signal mode, black internal finish, and polycarbonate lenses with a proprietary anti-UV hard coating. Standard-driver output is DOT FMVSS108 compliant for LHD/right-hand-traffic applications in the US and Canada.
Key Features & Specs:
- Brand: Morimoto
- Series: XB Evo Hybrid
- Part Number: LF2-502Y
- Product Type: LED Headlight Assembly Set
- Quantity: One Pair / 2 Headlights
- Position: 1x LH Driver Side and 1x RH Passenger Side
- Traffic Pattern: LHD / Right Hand Traffic Only - US/Canada Standard
- Standard Driver Output: DOT FMVSS108 Compliant - LB2V and UB2
- Supercharged Driver Output: Off-Road Use Only

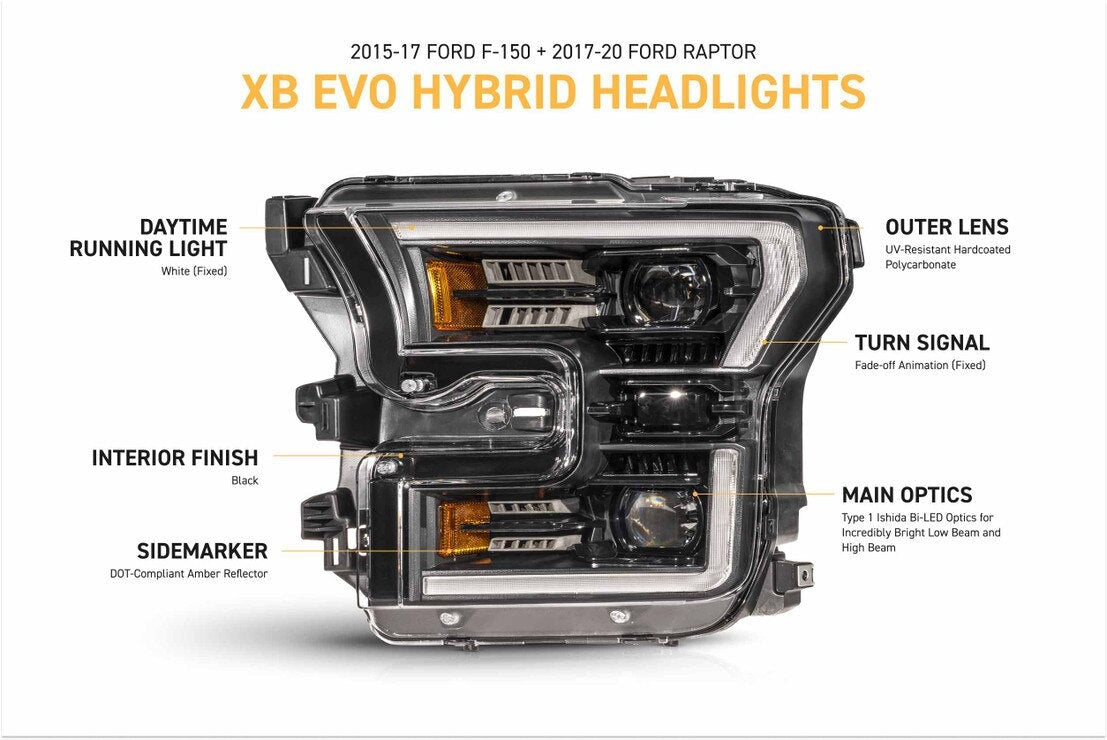

- Main Optics: 2x Type 1 Ishida Optic Bi-LED
- Functions: Low Beam, High Beam, Park, Turn Signal, and DRL
- Turn Signal Mode: Fade Off - Fixed
- DRL Color: White - Fixed
- Internal Finish: Black
- Side Marker: Amber side reflex reflector - DOT compliant
- Lens: Polycarbonate with proprietary anti-UV hard coating
- Optional Supercharged Drivers: LF2-DRVSC14
- Optional Protective Film: LMX502 Lamin-X Film
- Warranty: 5-Year Limited Warranty
- OE Part Numbers Replaced: FL3Z13008B, HL3Z13008M, GL3Z13008H, HL3Z13008K, FL3Z13008A, HL3Z13008L, GL3Z13008G, HL3Z13008J, KL3Z13008D, KL3Z13008B, KL3Z13008C, KL3Z13008A, JL3Z13008AH, JL3Z13008AG

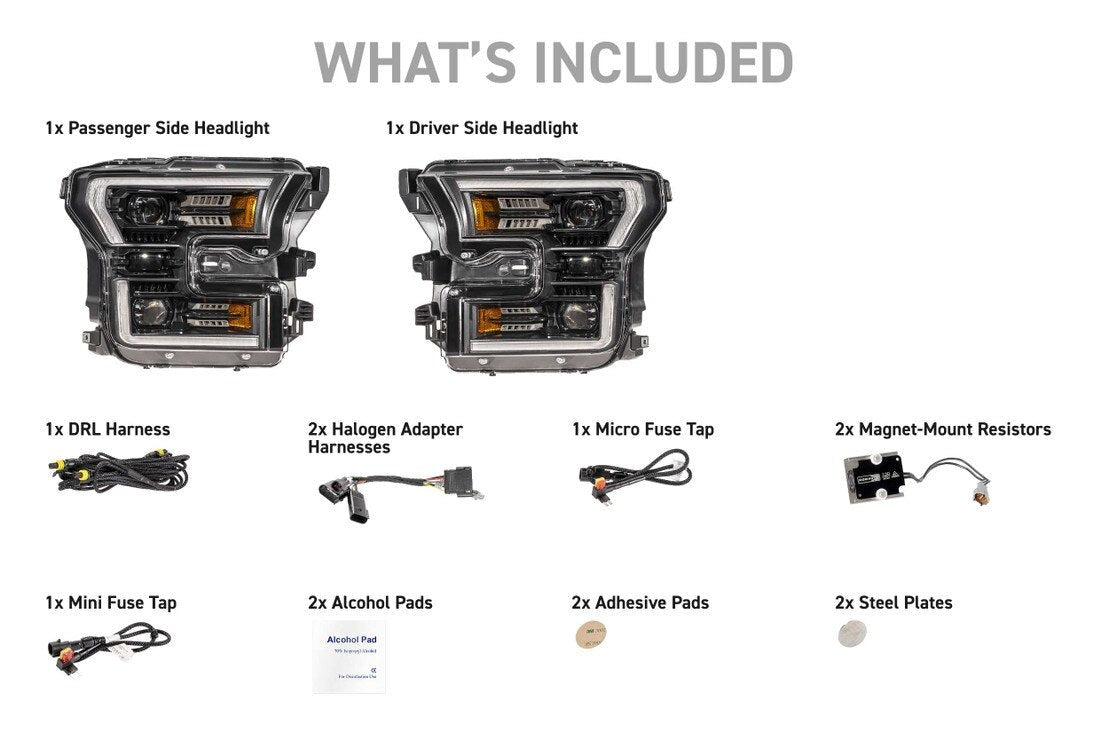

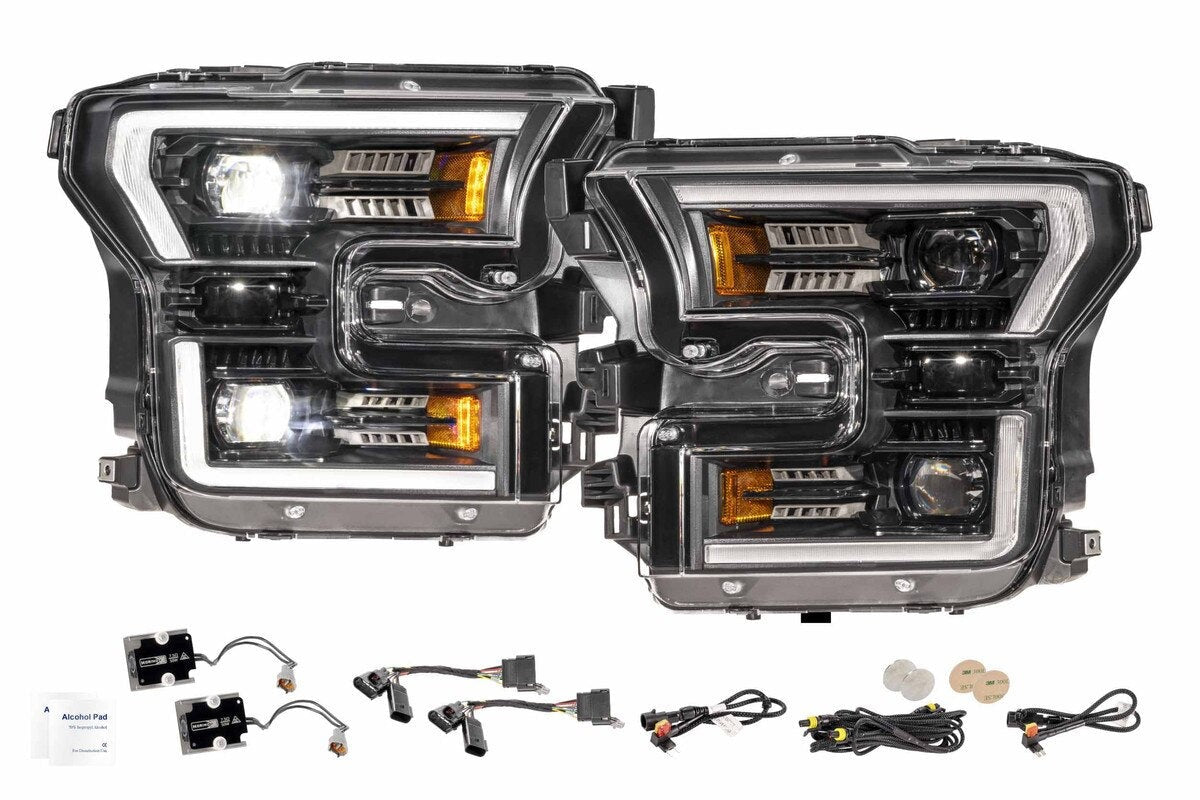

What's Included:
- 1x RH / Passenger Side Headlight
- 1x LH / Driver Side Headlight
- 2x Halogen Adapter Harnesses
- 2x Magnet Mount Resistors
- 1x Mini Fuse Tap
- 1x Micro Fuse Tap
- 1x DRL Harness
- 2x Alcohol Pads
- 2x Adhesive Pads
- 2x Steel Plates
Fitment:
- 2015-2017 Ford F-150
- 2017-2020 Ford Raptor
Morimoto XB Evo vs. XB Evo Hybrid
Morimoto XB Evo and XB Evo Hybrid headlights share Morimoto’s modern LED lighting technology and vehicle-specific styling, but the feature sets differ by application. XB Evo models are generally the more feature-rich option and may include upgrades such as configurable DRL colors, selectable turn-signal modes, welcome lighting, additional high-beam optics, or Frost-Free lens heating. XB Evo Hybrid headlights retain the core LED lighting and styling of the XB Evo family while removing certain premium features to provide a more streamlined configuration. Exact functions vary by part number, so refer to the product specifications above for the features included with this specific Morimoto headlight set.
