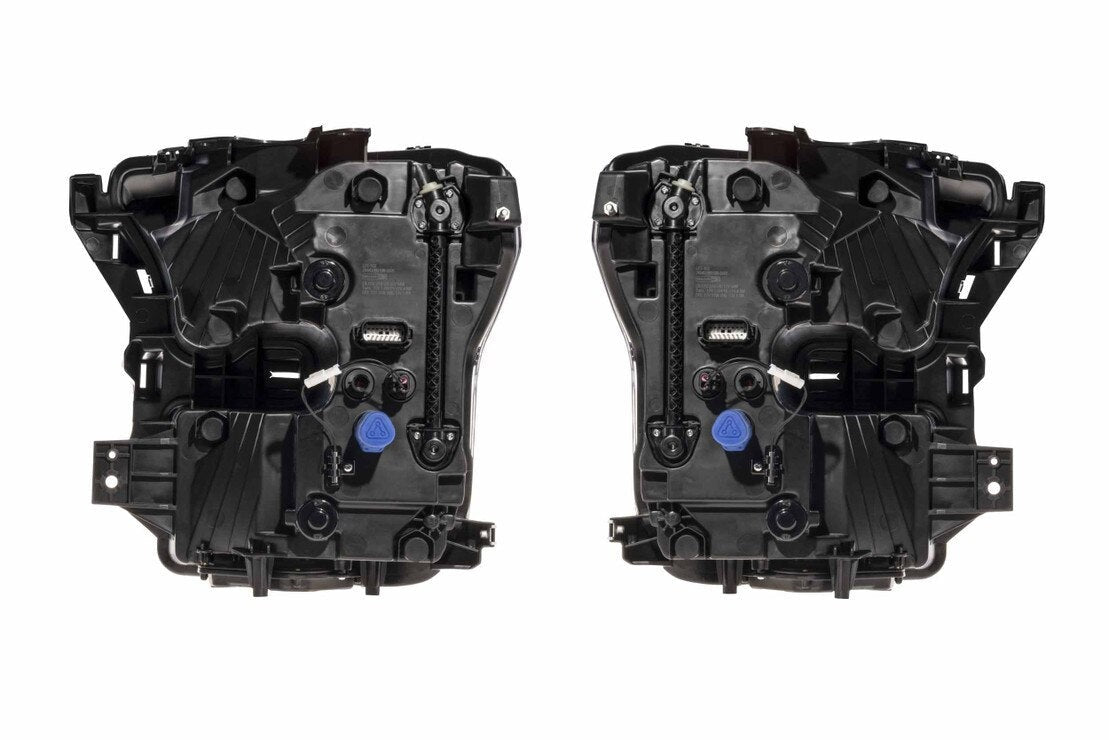

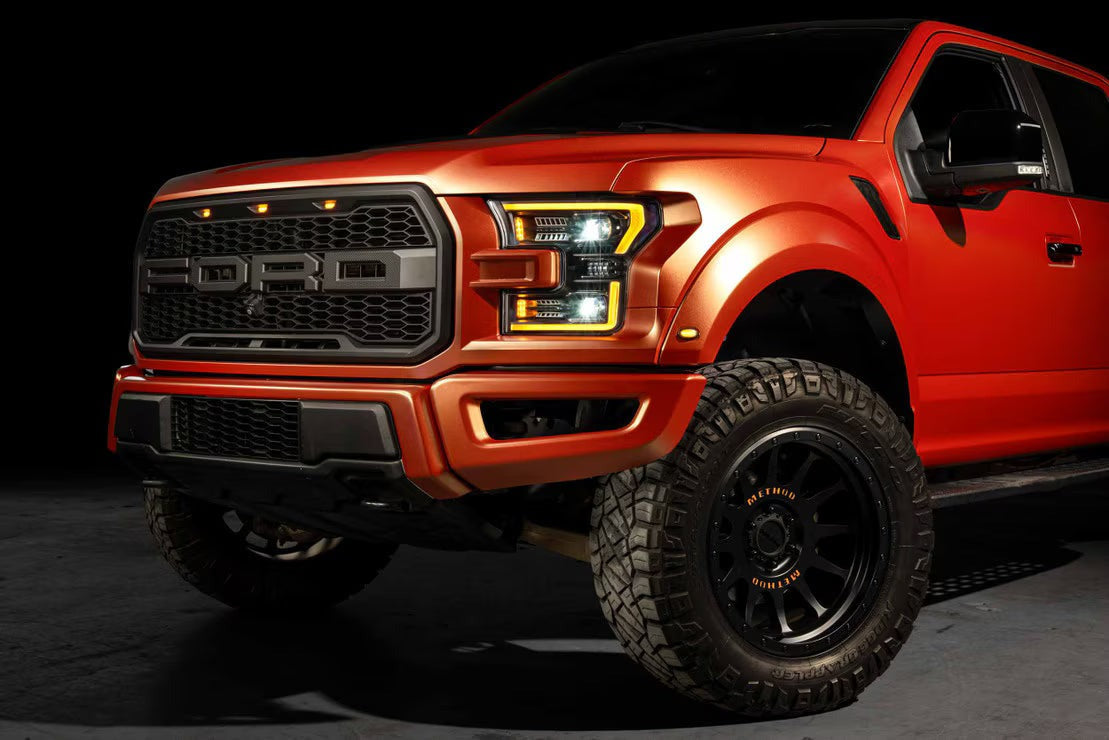

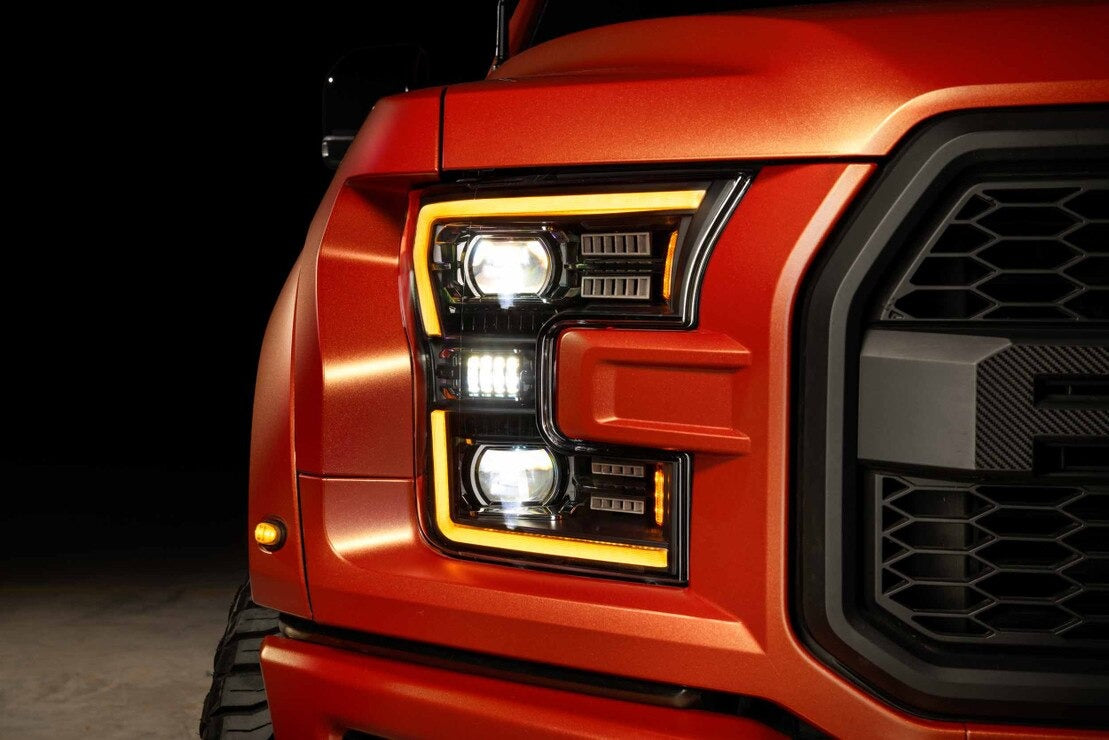

Morimoto XB Evo LED Headlights, part number LF2-502, are designed for 2015-2017 Ford F-150 and 2017-2020 Ford Raptor applications. Sold as a complete driver- and passenger-side pair, these headlights use dual Type 1 Ishida Bi-LED optics with a D-Optic high-beam assist and provide low beam, high beam, parking light, turn signal, DRL, welcome lighting, and lens-heating functions. Configurable white or amber DRLs and sequential or fade-off turn signals allow the lighting behavior to be personalized, while the logic-controlled Frost-Free system helps reduce frost buildup in cold-weather conditions. Standard-driver output is DOT FMVSS108 compliant for LHD/right-hand-traffic applications in the US and Canada.
Key Features & Specs:
- Brand: Morimoto
- Series: XB Evo
- Part Number: LF2-502
- Product Type: LED Headlight Assembly Set
- Quantity: One Pair / 2 Headlights
- Position: 1x LH Driver Side and 1x RH Passenger Side
- Traffic Pattern: LHD / Right Hand Traffic Only - US/Canada Standard
- Standard Driver Output: DOT FMVSS108 Compliant - LB2V and UB2
- Supercharged Driver Output: Off-Road Use Only
- Main Optics: 2x Type 1 Ishida Optic Bi-LED
- High-Beam Assist: 1x D-Optic High Beam Assist
- Functions: Low Beam, High Beam, Park, Turn Signal, DRL, Welcome, and Lens Heating

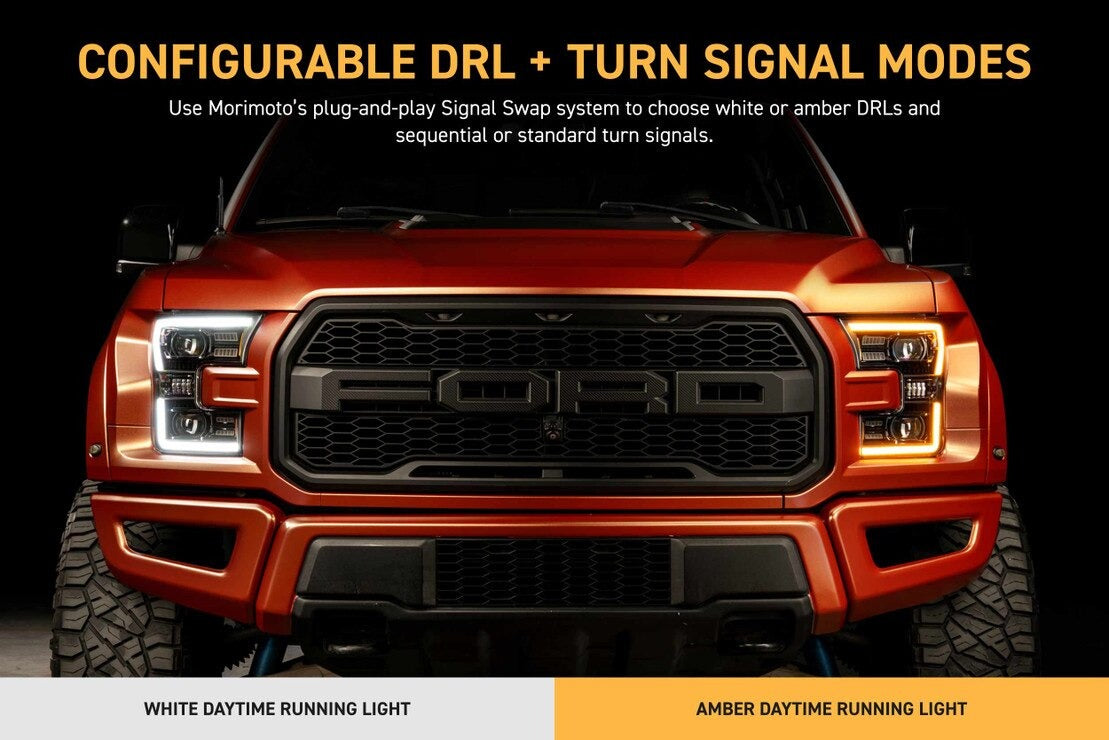

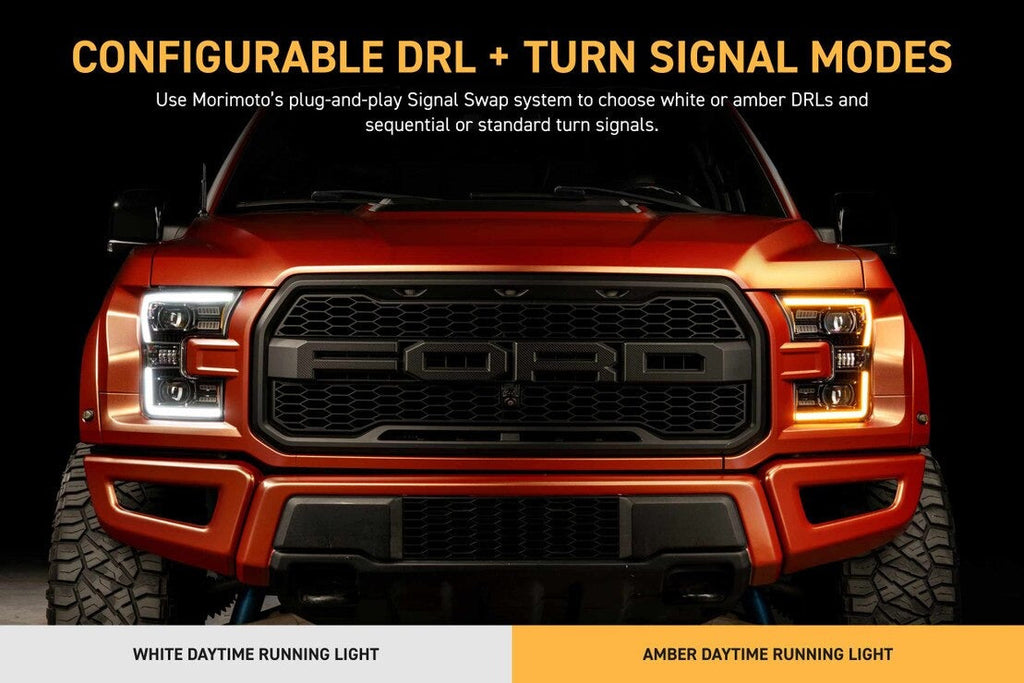

- Turn Signal Modes: Sequential or Fade Off - Configurable
- DRL Colors: White or Amber - Configurable
- Frost-Free System: Logic-controlled 50W ceramic system with circulation fans
- Frost-Free Activation: Flash high beams four times when temperature is below 5°C / 41°F
- Internal Finish: Two-Tone Piano Black and Titanium with contrasting textures
- Side Marker: Amber side reflex reflector - DOT compliant
- Lens: Polycarbonate with proprietary anti-UV hard coating
- Optional Supercharged Drivers: LF2-DRVSC14
- Optional Protective Film: LMX502 Lamin-X Film
- Warranty: 5-Year Limited Warranty
- OE Part Numbers Replaced: FL3Z13008B, HL3Z13008M, GL3Z13008H, HL3Z13008K, FL3Z13008A, HL3Z13008L, GL3Z13008G, HL3Z13008J, KL3Z13008D, KL3Z13008B, KL3Z13008C, KL3Z13008A, JL3Z13008AH, JL3Z13008AG

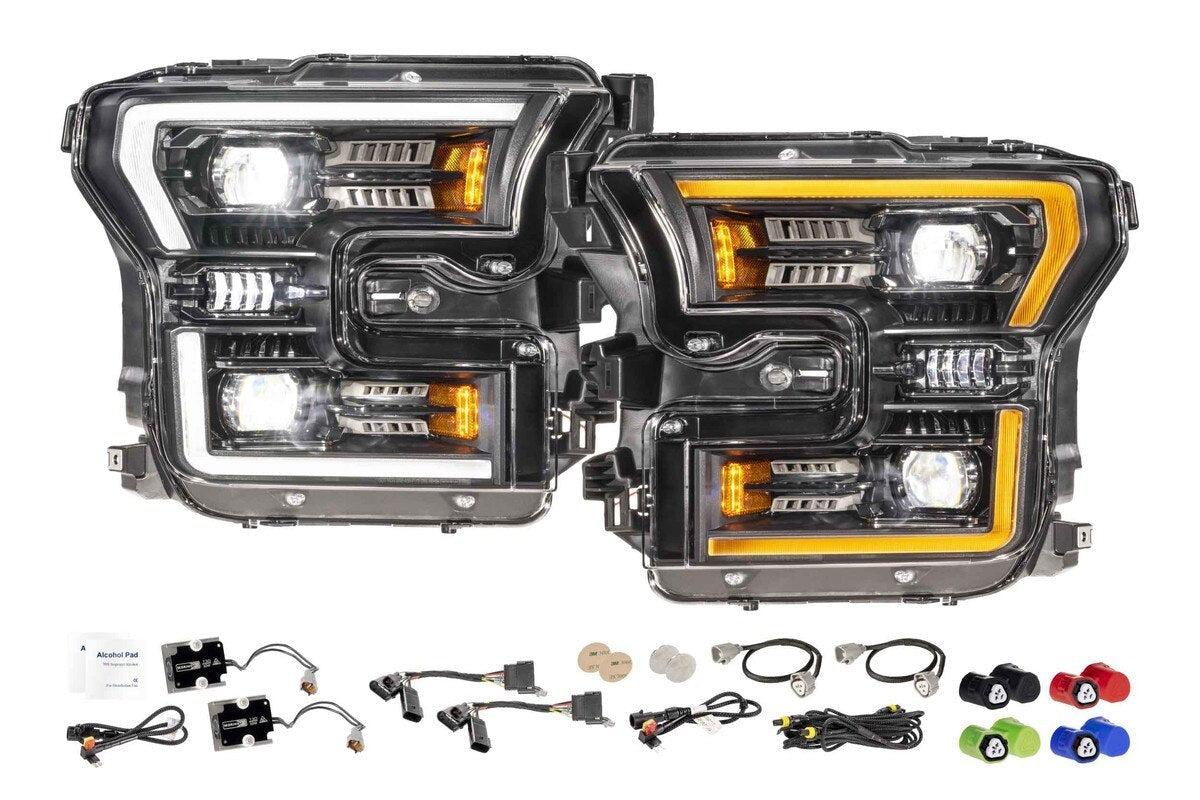

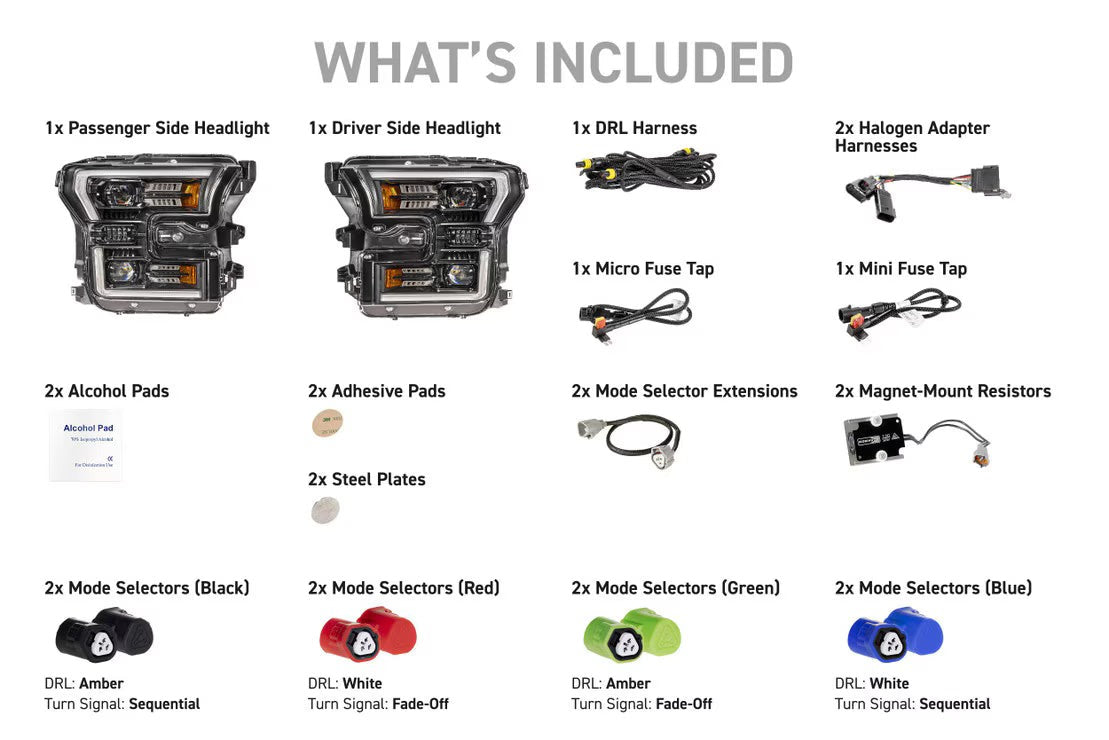

What's Included:
- 1x RH / Passenger Side Headlight
- 1x LH / Driver Side Headlight
- 2x Halogen Adapter Harnesses
- 2x Magnet Mount Resistors
- 1x Mini Fuse Tap
- 1x Micro Fuse Tap
- 1x DRL Harness
- 2x Mode Selector Extensions
- 8x Mode Selectors - Four Pairs
- 2x Alcohol Pads
- 2x Adhesive Pads
- 2x Steel Plates
Fitment:
- 2015-2017 Ford F-150
- 2017-2020 Ford Raptor
Morimoto XB Evo vs. XB Evo Hybrid
Morimoto XB Evo and XB Evo Hybrid headlights share Morimoto’s modern LED lighting technology and vehicle-specific styling, but the feature sets differ by application. XB Evo models are generally the more feature-rich option and may include upgrades such as configurable DRL colors, selectable turn-signal modes, welcome lighting, additional high-beam optics, or Frost-Free lens heating. XB Evo Hybrid headlights retain the core LED lighting and styling of the XB Evo family while removing certain premium features to provide a more streamlined configuration. Exact functions vary by part number, so refer to the product specifications above for the features included with this specific Morimoto headlight set.
