Radium FPR Adapter Housing Fittings Hardware - Universal

This is the Radium Engineering Billet Aluminum Fuel Pressure Regulator Housing. This unit provides a convenient package for plumbing and mounting. The regulator top is secured with a stainless steel snap ring, and can easily be removed using snap-ring pliers. The two main high-pressure ports are threaded for 6AN ORB fitting provisions. The 6AN male return port is integrated into the housing, and there is also a 1/8 NPT female port for a gauge or a pressure transducer. Each FPR housing is laser-etched and anodized for a superior finish.

Radium Engineering Billet Aluminum Fuel Pressure Regulator Housing

SPECS:

• Billet aluminum construction
• Laser-etched and anodized for a superior finish
• Designed with (2) high-pressure ports threaded for 6AN ORB fitting provisions
• There is an additional 1/8 NPT female port for a gauge or a pressure transducer

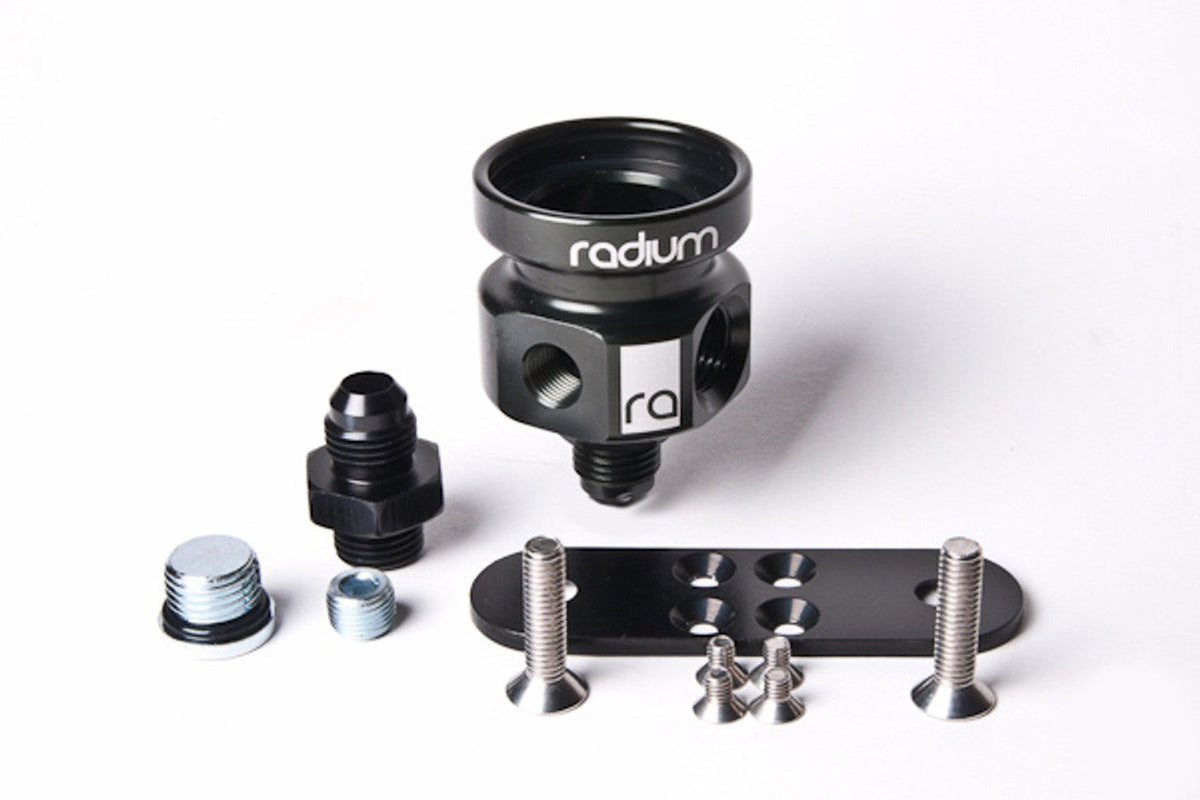

INCLUDES:

• Billet 6061 aluminum housing
• 6AN male adapter fitting
• 6AN ORB plug fitting
• 1/8-27 NPT port plug
• Integrated -6AN male return port
• Stainless steel mounting hardware
• Stainless steel snap retaining ring
• Anodized aluminum mounting bracket
