Tomei ARMS BX7760 Turbo - Subaru Models (Inc. 2002-2007 Subaru WRX / 2004-2021 STI / 2005-2006 Baja / 2004-2008 Forester / 2005-2006 Sab 9-2X)
Tomei ARMS BX7760 Turbo - Subaru Models (Inc. 2002-2007 Subaru WRX / 2004-2021 STI / 2005-2006 Baja / 2004-2008 Forester / 2005-2006 Sab 9-2X)
The newly designed Billet Compressor Wheel offers significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface care for significantly improved airflow and turbo spool.

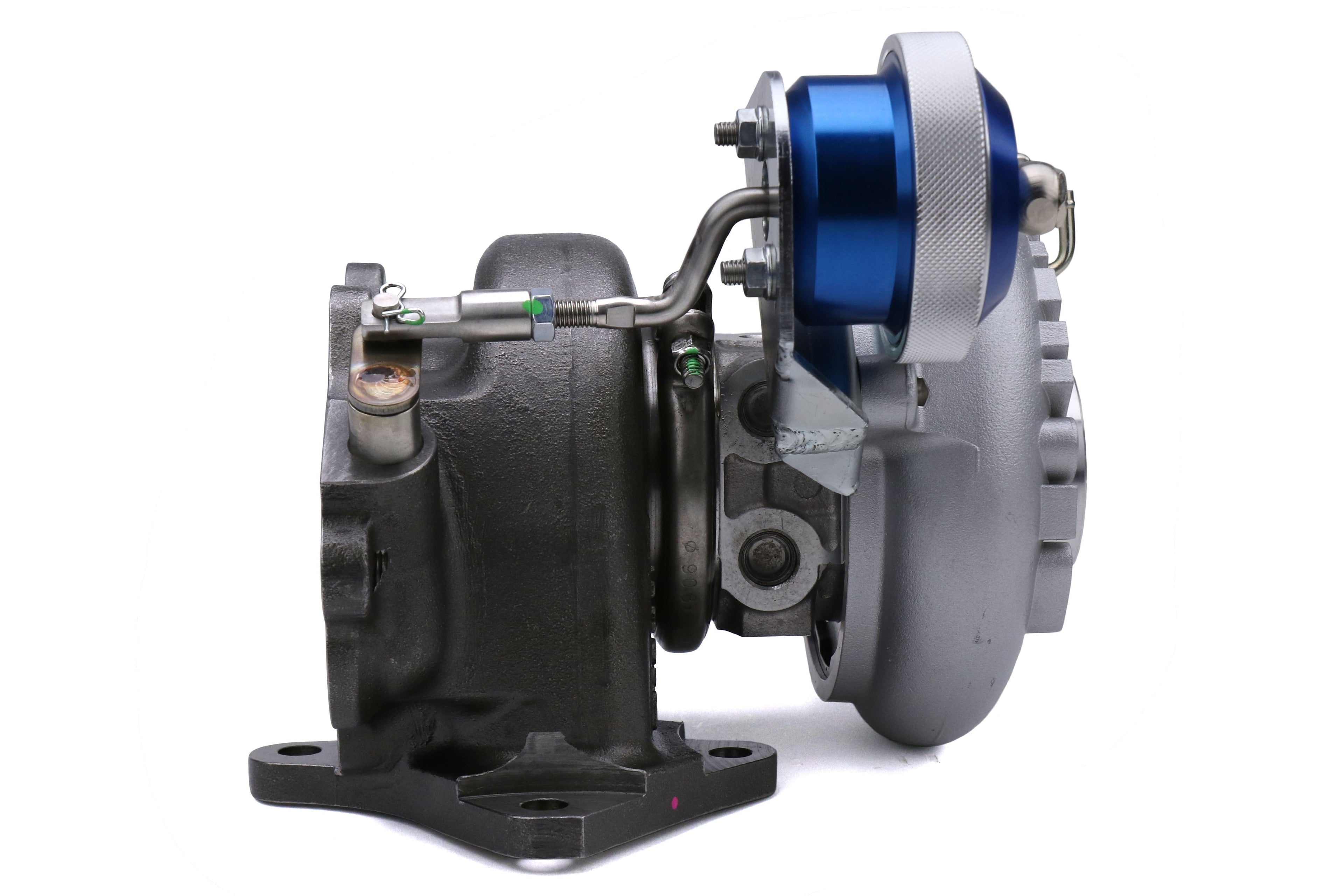

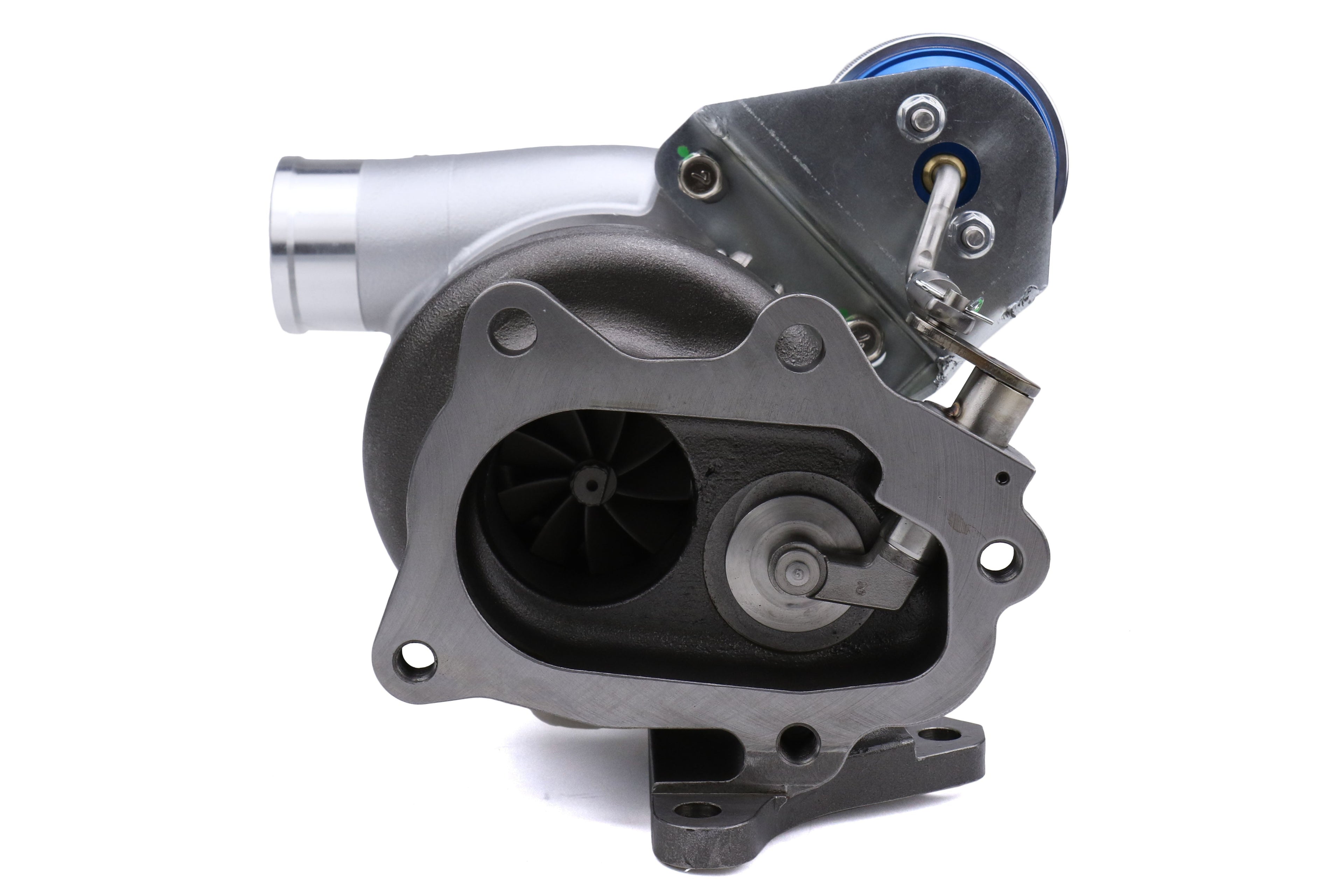

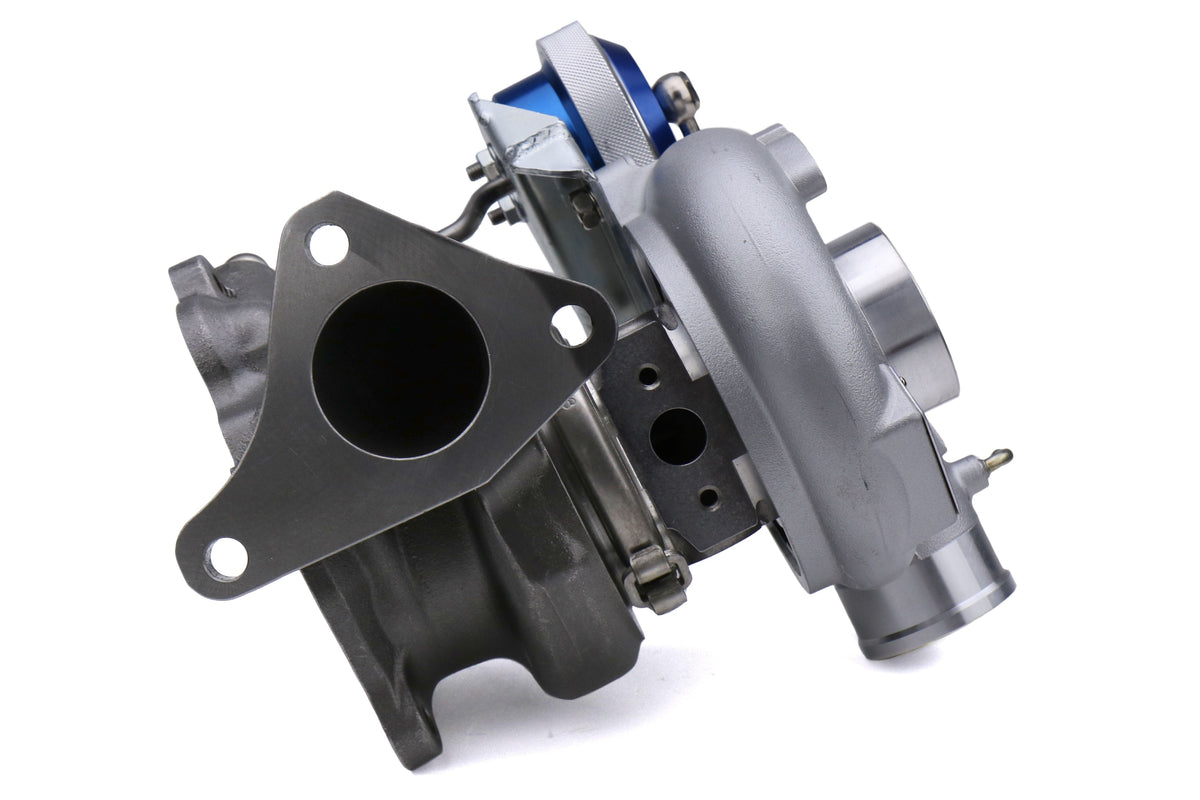

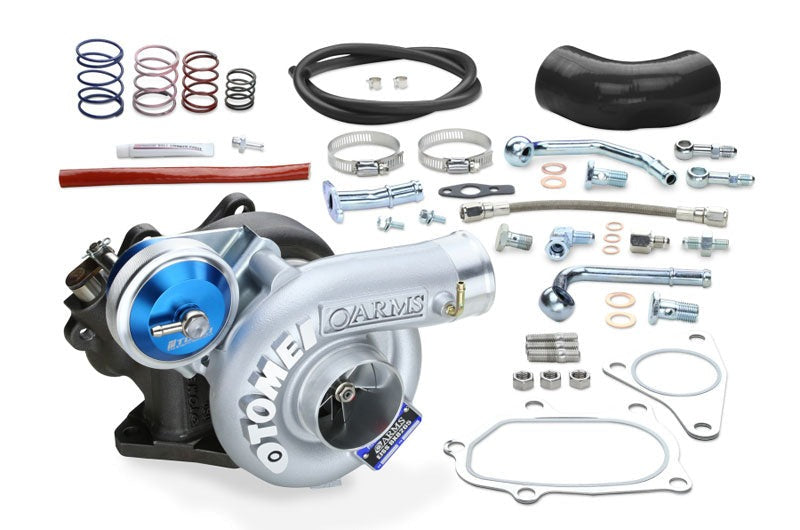

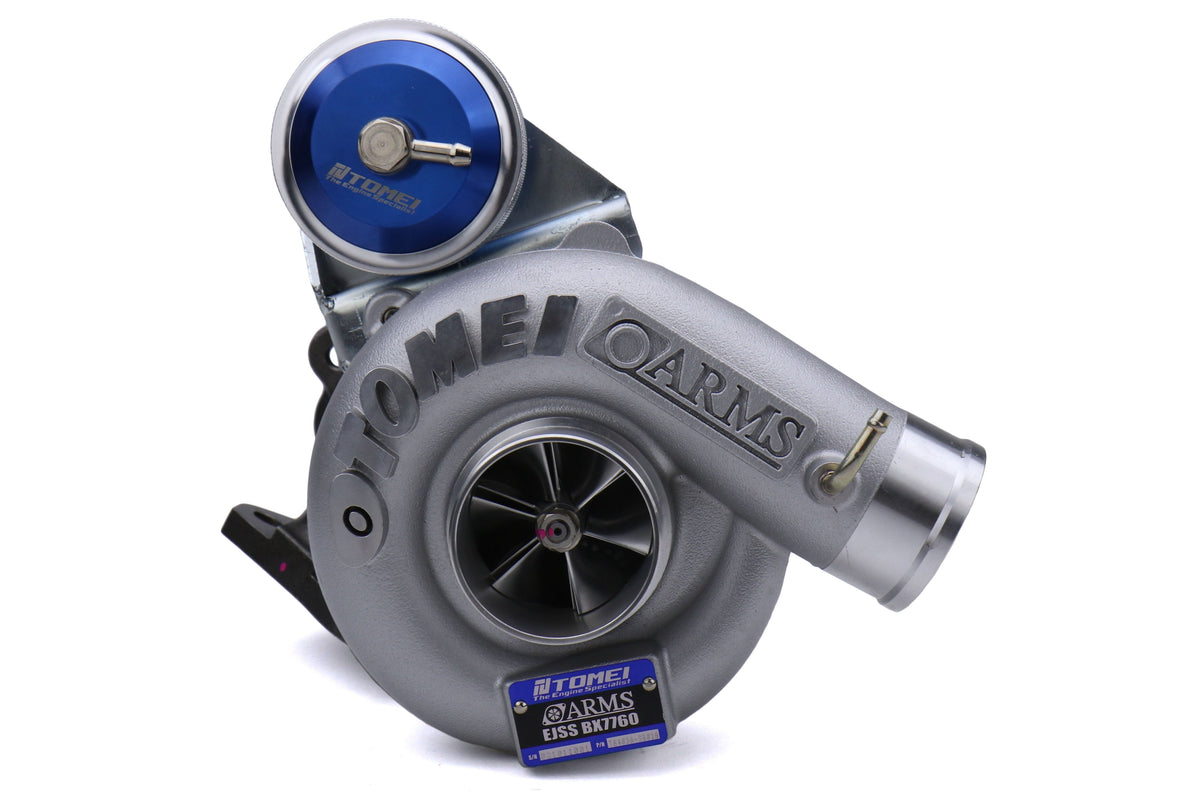

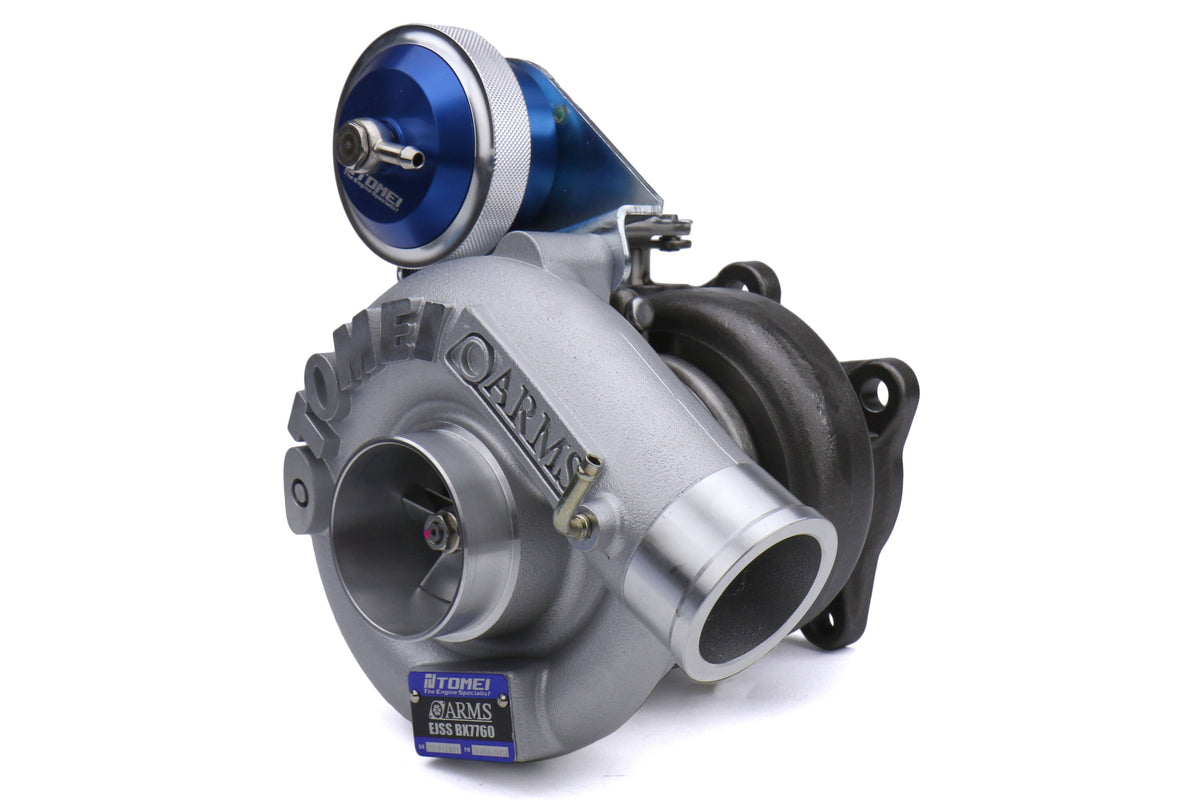

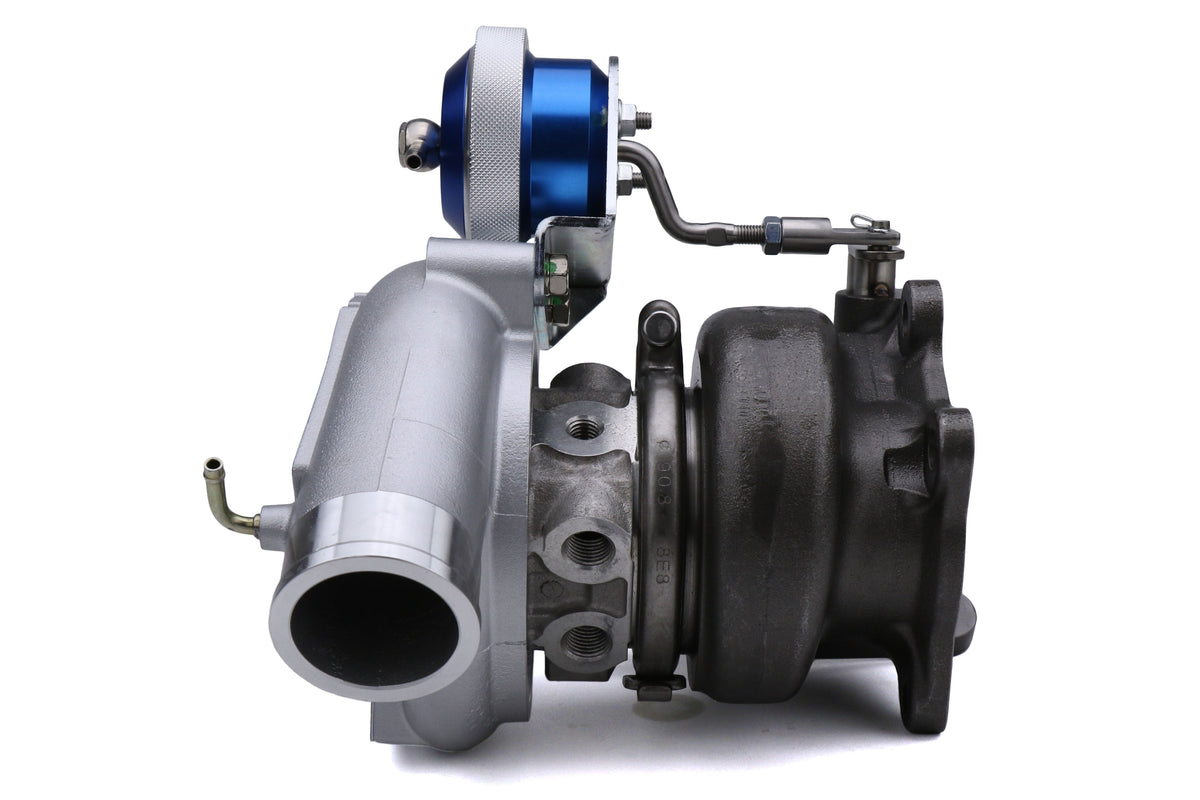

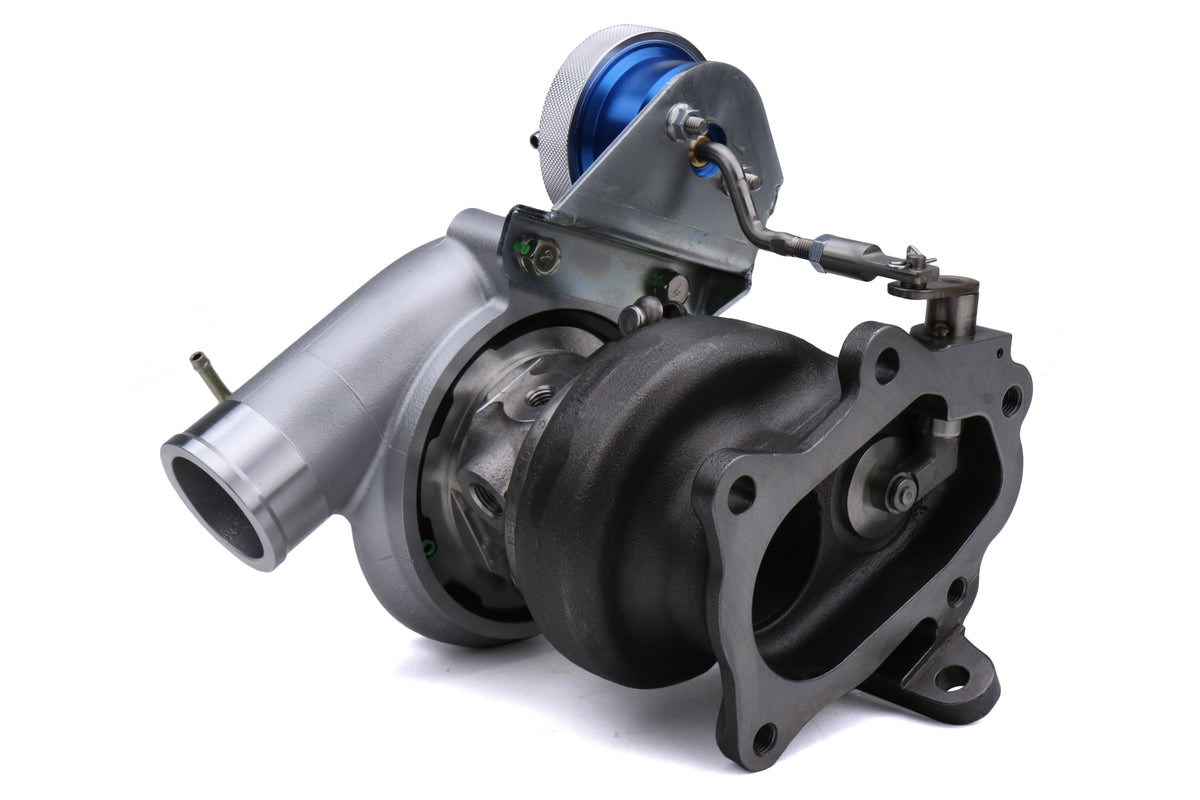

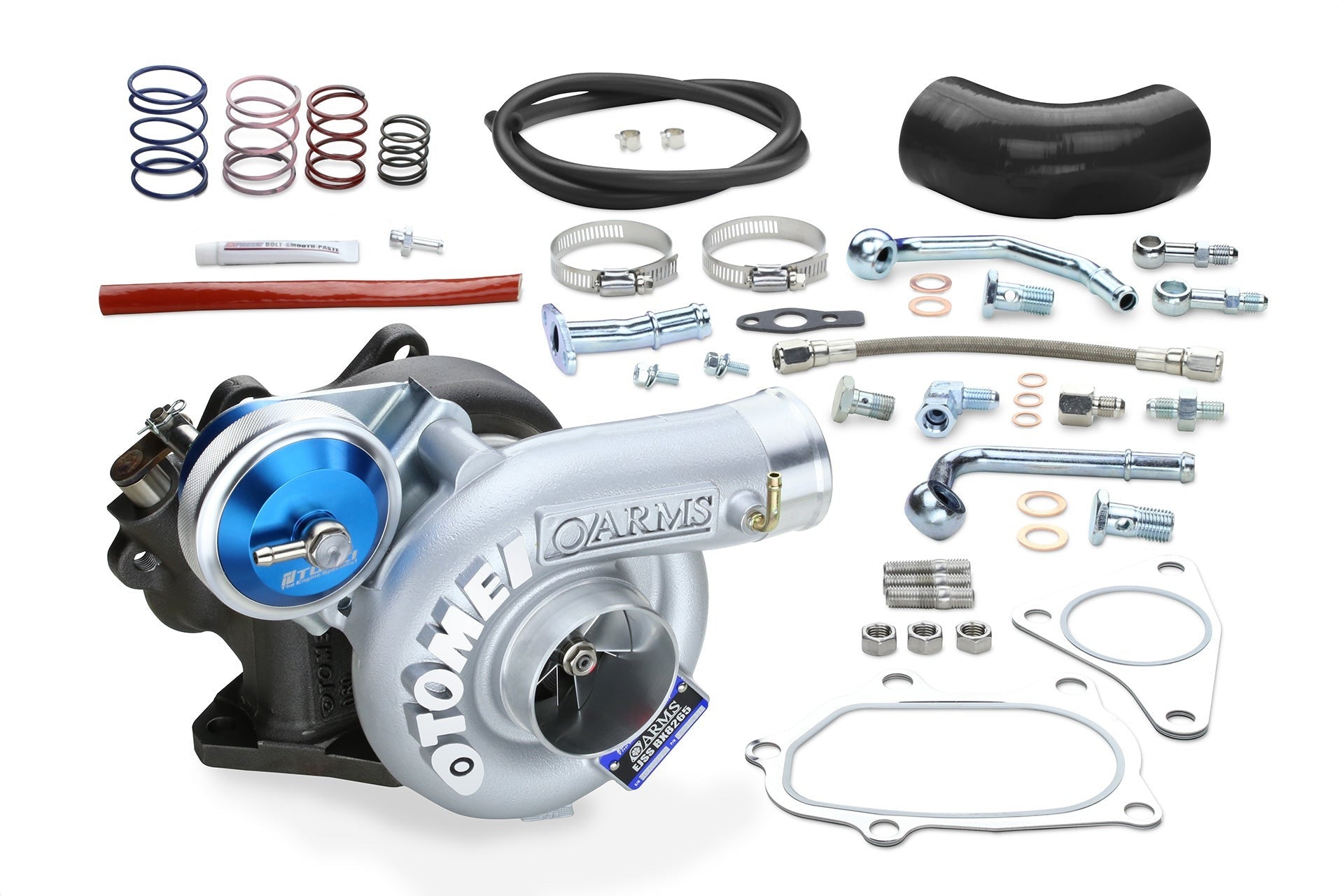

Tomei ARMS BX7760 Turbo
Highlights
- Rated up to 380 HP with supporting modifications
- Ball-bearing type
- 1.0 BAR initial boost setting
- Single-scroll type
CNC BILLET COMPRESSOR WHEEL:
- Machined from aerospace-grade materials
- Highly durable and lightweight
- Made with thinner blades with a larger surface area
- Improves the air flow and turbo spool
TURBINE WHEEL SPECS:
- 49.1mm exducer
- 56mm inducer
- 77 trim
- 9 blades
- Cast K418 construction

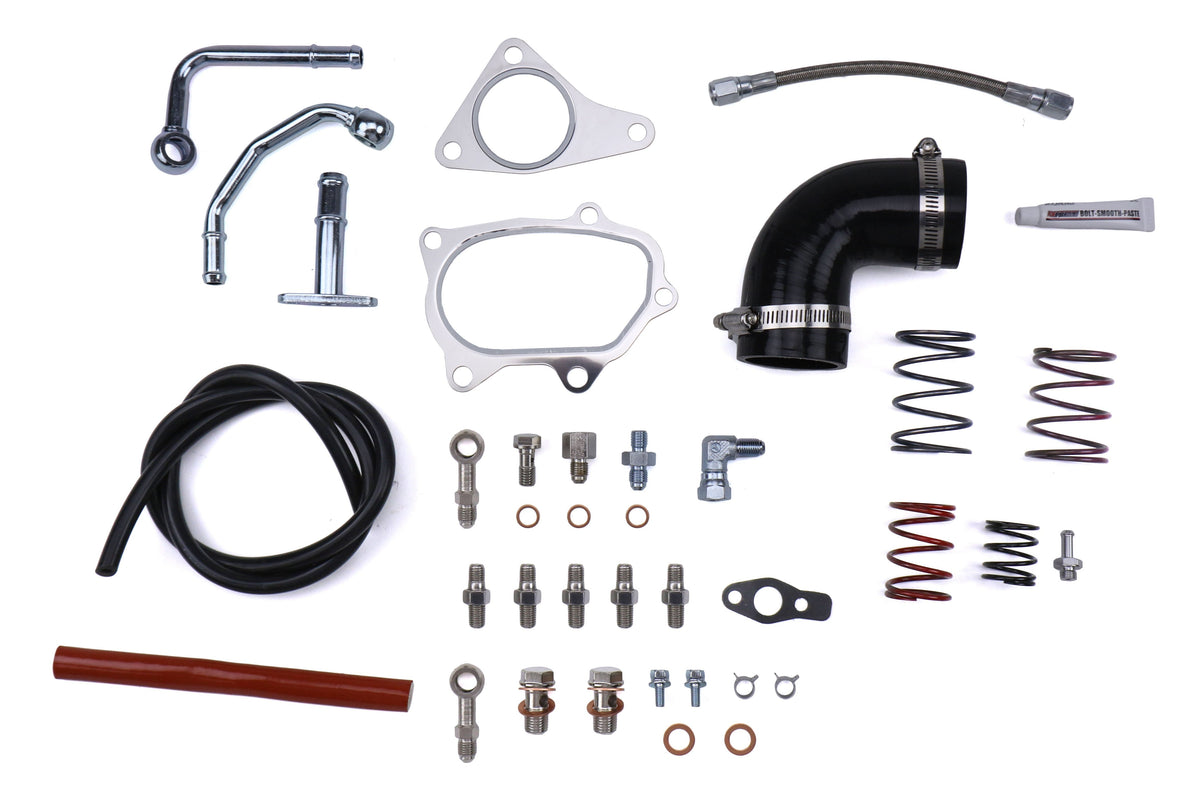

MULTI-RATE BILLET ACTUATOR:
- Large capacity
- Reinforced forged billet construction
- Includes a total of (6) springs for fine boost adjustments
- The swivel-type nipple allows for greater freedom when routing hoses
- You can combine up to (3) springs to find the perfect setup
COMPRESSOR WHEEL SPECS:
- 52.6mm inducer
- 68mm exducer
- 60 trim
- 6/6 blades
- CNC billet A2618 construction
COMPRESSOR HOUSING SPECS:
- 53.6mm inducer
- 41.63mm exducer
- A/R: 0.78
TURBINE HOUSING SPECS:
- 45.0mm inducer
- EJ exducer
- A/R: 0.57
Faster Track Times
The BX-Series is Tomei's latest ball-bearing turbocharger example that features the latest in turbocharger technology. This turbocharger features a CNC billet compressor wheel for durability over the conventional cast compressor wheel, and it also features Tomei's Multi-Rate Billet Actuator to allow the user to perform fine-tuning of the boost so you can hit your preferred targets every time.
A large capacity multi rate billet actuator is utilized, with a reinforced forged billet construction. Includes a total of 6 springs for fine boost adjustments. Up to 3 springs can be combined to find the perfect setup. Swivel type nipple allows for greater freedom when routing hoses.
