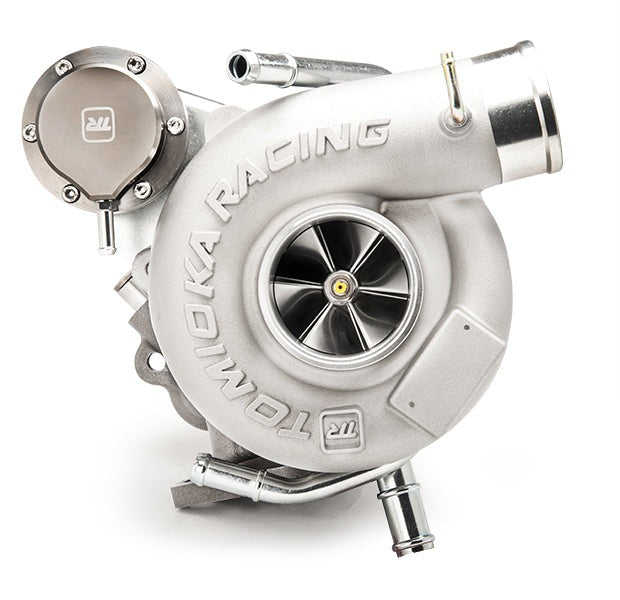

Tomioka Racing TD05-20G Ball Bearing Turbo - 2002-2007 Subaru WRX/ 2004-2018 STI
Tomioka Racing TD05-20G Ball Bearing Turbo - 2002-2007 Subaru WRX/ 2004-2018 STI
Faster Spool with Ball Bearing Technology
Say goodbye to slow spool times with the new ball bearing version of the Tomioka Racing TD05-20G turbo for Subaru. Equipped with dual ceramic ball bearings and a billet compressor wheel, this turbo spools nearly as quickly as a factory unit when matched with the proper tune.
Balanced and Improved Airflow
The design balances and enhances airflow through the TD05 frame, providing a more responsive throttle and increased driving excitement for your daily Subaru.
Seamless Bolt-On Fitment
This ball bearing TD05-20G turbo maintains the same direct bolt-on fitment as its predecessor, making installation straightforward without the need for additional modifications. The kit includes the turbocharger, gaskets, hardware, and even a complimentary 2L can of Motul 300V oil for optimal performance.
Turbo Characteristics:
|
Bearing Type: |
Ball Bearing |
|
|
Flange Type: |
Standard Subaru 5-Bolts |
|
|
Compressor Wheel |
In: |
52.5 mm |
|
Ex: |
68 mm |
|
|
Turbine Wheel |
In: |
56 mm |
|
Ex: |
49.2 mm |
|
|
Actuator: |
1.1 bar / 19 psi (Optional 1.3 bar) |
|
|
Turbine Housing: |
8 cm2 |
|
|
Max. Power: |
480 HP |
|
Specifications:
- Dual Ceramic Ball Bearing
- Billet Compressor Wheel
- Fast Spool
- Bolt-On
Kit Contents:
- Turbocharger
- Gasket
- Hardware Kit
- Motul 300V 2L
Applications:
- 2002 - 2007 Subaru WRX
- 2004 - 2018 Subaru STi
