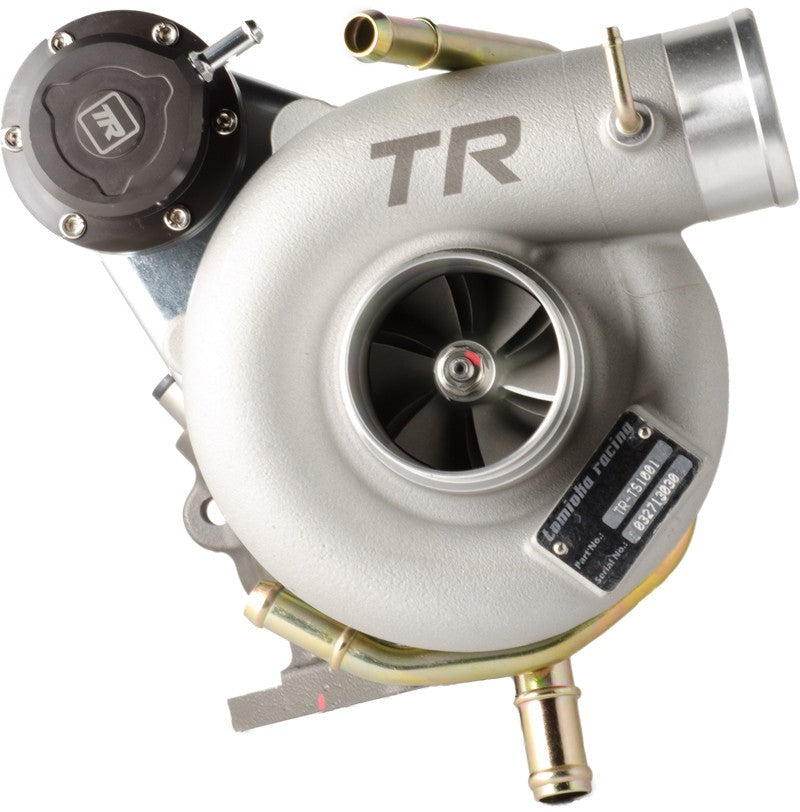

Tomioka Racing TD05-20G Turbo - 2002-2007 Subaru WRX / 2002-2010 STI (w/ Billet Actuator)
Tomioka Racing TD05-20G Turbo - 2002-2007 Subaru WRX / 2002-2010 STI (w/ Billet Actuator)
TR TD05-20G: The Go-To Turbo for Subaru
The TR TD05-20G turbo stands as one of the most popular choices for Subaru enthusiasts seeking performance on both street and track. Capable of producing up to 400WHP while maintaining excellent drivability for daily use, this turbo strikes a perfect balance between power and responsiveness. Featuring larger wheel blades compared to the TD05-18G, it delivers strong mid to high-end horsepower without adding turbo lag over the factory setup.
Ready to install straight out of the box, the TR TD05-20G comes complete with all necessary fittings and gaskets, making it a true bolt-on solution for upgrading your Subaru’s performance.
Turbo Characteristics:
| Bearing Type: | Journal | |
| Flange Type: | Standard Subaru 5-Bolts | |
| Compressor Wheel | In: | 52.5 mm |
| Ex: | 68 mm | |
|
Turbine Wheel |
In: | 56 mm |
| Ex: | 49.2 mm | |
| Actuator: | 1.3 Bar / 19 psi | |
| Turbine Housing: | 8 cm2 | |
| Max. Power: | 450 HP | |
APPLICATIONS
- 2002-2007 WRX
- 2004-2020 STI
Kit Contents
-
Turbocharger
-
Actuator
-
Oil Pipe
-
Water Pipe
-
Gaskets
- Hardware kits
